Range / deck and hull fittings / hatch covers

grey hatch cover
PDF drawing

External Seal Hatch Cover – Medium

A.537-

Price range: £13.37 through £28.19

By adding this item to my basket I agree I have read and understood the terms and conditions of sale.
Stockists

Returns and refunds

SKU: A.537- Category:

Description

157mm Hatch Cover.



This is an externally sealed hatch cover.

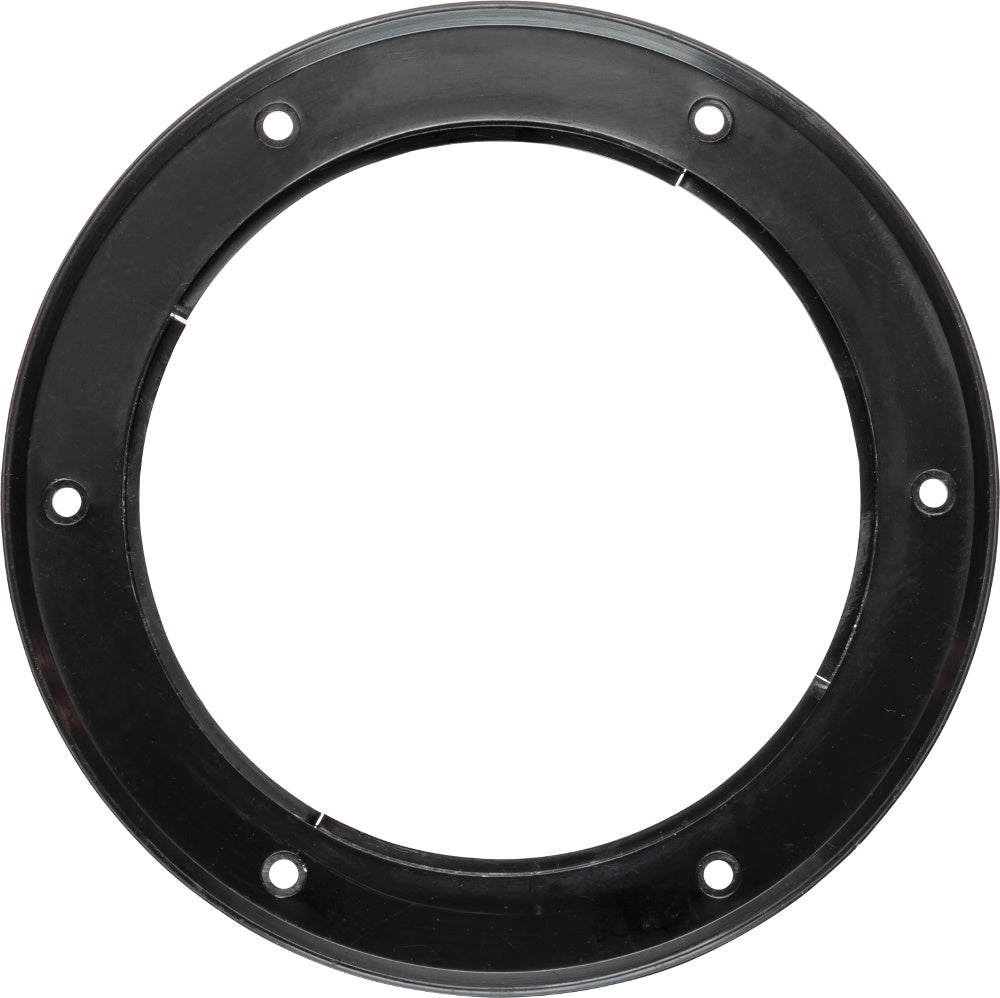

The gasket (body) is fixed to the hull of the boat and the A.538 O ring is placed around the gasket, under the small lip. The hatch cover lid is then screwed tight onto the gasket and forms a seal with the O ring around the external diameter of the hatch.



Available in three colours and with or without a hatch bag.



This hatch cover requires O ring A.538 to be installed for complete water tightness.



PLEASE NOTE – A.538 is not included.

Reviews

There are no reviews yet.

Be the first to review “External Seal Hatch Cover – Medium”

This site uses Akismet to reduce spam. Learn how your comment data is processed.

External Seal Hatch Cover - Medium

SKU Title fixing hole diameter mmcut out size mmOpening mmo ring required Length mm Weight g Price
A.137 Non O Ring Hatch Cover 310999- 200 42 £13.37
A.237 Non O Ring Hatch Cover 3159144- 200 117 £13.37
A.337- External Seal Hatch Cover - Small 3110100A.338 200 62 £13.37
A.537- External Seal Hatch Cover - Medium 3157145A.538 200 111 £13.37
A.637- External Seal Hatch Cover - Large 3241223A.638 200 266 £13.37
A.338 Rubber Sealing O Ring For A.337 ---- 200 4 £13.37
A.538 Rubber Sealing O Ring For A.537 ---- 200 4 £13.37
A.638 Rubber Sealing O Ring For A.637 ---- 200 5 £13.37
A-BAG-KIT Hatch Cover Bag With Fixing Screw ---- 200 17 £13.37
A1737- Internal Seal Hatch Cover - Small 4108100- 200 84 £13.37
A1837- Internal Seal Hatch Cover - Medium 4138130- 200 117 £13.37
A1937- Internal Seal Hatch Cover - Large 4154148- 200 142 £13.37
SA.837 Rubber Sealing O Ring For A1837 & A1937 ---- £13.37
SA.737 Rubber Sealing O Ring For A1737 ---- £13.37
