Aluminium Sheave Box - Medium
PDF drawing
IGES file link

Aluminium Sheave Box – Medium

A...9-

Price range: £11.17 through £32.08

By adding this item to my basket I agree I have read and understood the terms and conditions of sale.
Stockists

Returns and refunds

SKU: A...9- Category: Tags: , , ,

Description

Aluminium Sheave Box – Medium

Aluminium body sheave box with a choice of three sheaves.

With an easy to remove axle pin, sheaves can be maintained or swapped very simply. The axle pin is held in place by the surface the box is mounted to.

Ideal for installation into sailboat masts, but also suitable for use in the deck of a boat or any other surface which requires rope or wire to be passed through.

Key Features:

Durable Construction: The body is made from forged aluminium for long-lasting performance.

Various Sheave Options: A choice of three sheave materials and bearing options to suit your specific application.

Versatile Compatibility: Suitable for a wide range of mast sizes and applications.

Sheave Options:

Acetal Plain Bearing: The lightweight, low-maintenance option. Suitable for maximum working loads up to 300Kg. Can be used with rope and wire.

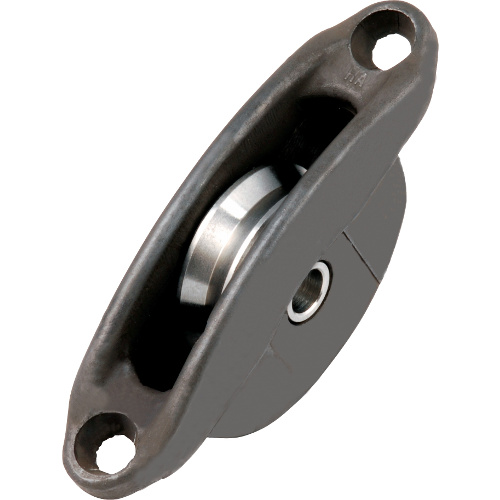

Stainless Steel Dynamic: The lowest friction for maximum performance option. Suitable for maximum working loads up to 300Kg. Ideal for fast running systems. Can be used with rope and wire.

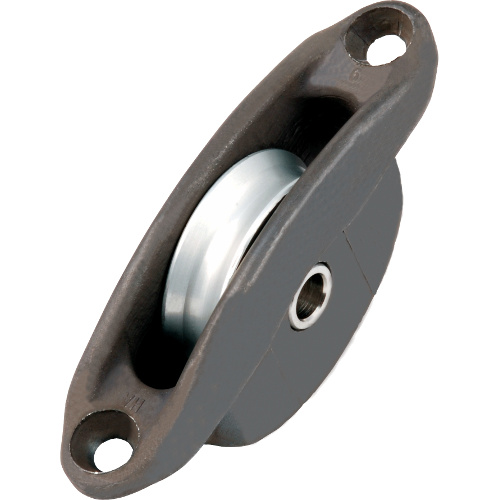

Aluminium Plain Bearing: Suitable for maximum working loads up to 300kg. Can be used with rope and wire. Ideal for highly statically loaded applications.

Click the PDF logo above to open a detailed technical drawing.

Reviews

There are no reviews yet.

Be the first to review “Aluminium Sheave Box – Medium”

This site uses Akismet to reduce spam. Learn how your comment data is processed.

Aluminium Sheave Box - Medium

SKU Title Sheave Width mmSheave Diameter mmSheave MaterialSlot Size mmFixing Hole Centres mmFixing Hole Diameter mmMaximum Working Load KgBreaking Load KgLength mmLine Diameter mm Length mm Weight g Price
A..15- Low Profile Sheave Box - Small 625Acetal / Stainless Steel38 x 10-4300750543 - 5 53 12 £11.17
A..16- Low Profile Sheave Box - Medium 638Acetal / Stainless Steel58 X 13-540090086.23 - 6 85 36 £11.17
A...6- Aluminium Sheave Box - Large 838Acetal / Stainless Steel52 x 15654400800773 - 6 76 34 £11.17
A...9- Aluminium Sheave Box - Medium 825Acetal44 x 13574300670693 - 6 66 21 £11.17
A...8- Nylon Sheave Box - Large 1238Acetal / Aluminium70 x 228043507001033 - 11 100 41 £11.17
A..28 Aluminium Sheave Box - Plain Bearing 1238Acetal 70 x 22876350700 110 100 £11.17
A4409 Stainless Steel Sheave Box - Plain Bearing 1238Stainless Steel77 x 19 906300600 200 98 £11.17
A...4 Aluminium Sheave Box - Plain Bearing 826Acetal 43 x 176545001000 76 26 £11.17
A...5 Aluminium Sheave Box - Plain Bearing 636Acetal 50 x 14704250400 80 33 £11.17
A...7 Aluminium Double Sheave Box - Plain Bearing 826Acetal 42 x 27 654250500 76 48 £11.17
A..94 Nylon Mast Head Sheave Box - Plain Bearing 636Acetal --To Fit 20mm Tube -- 200 40 £11.17
SA..94 Adaptor For A..94 -----To Fit 35mm Tube -- 200 18 £11.17
A4430-4716 30mm Exit Sheave Box 1030Acetal / Stainless Steel47 x 16605.2300600754 - 8 35 £11.17
A4420-4215 20mm Exit Sheave Box 820Acetal / Stainless Steel42 x 15625250500773 - 6 29 £11.17
A4438-5415 Wire Exit Sheave Box 738Acetal / Stainless Steel54 x 15725600900864 - 7 0 £11.17
A4438-5818-12 38mm Exit Sheave Box 1038Acetal / Stainless Steel58 x 18765600900904 - 10 29 £11.17
