A2029

20mm Single Dynamic Block - Linked

20mm Single Dynamic Block - Linked

£25.47 ex VAT £30.56 inc VAT
ex VAT £0.00 inc VAT £25.47 ex VAT £30.56 inc VAT
Sale Sold out
Shipping calculated at checkout.

In stock - 12 units(Can be backordered)

Require larger quantities? Contact us

Stockists

Delivery

Fast UK delivery from £4.50 or FREE when spending over £100.
More Info

View full details
Product Datasheet Download Product Datasheet Download

Description

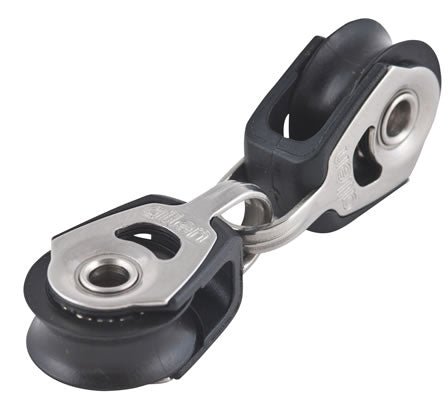

20mm Linked Single Dynamic Blocks

The 20mm Linked Single Dynamic Blocks combine two of our proven A2020 Dynamic Blocks into a compact linked assembly, ideal for systems requiring smooth, efficient line handling. Part of our Dynamic range, they are best suited to applications with constant sheave movement.

Key Features

  • Linked twin-block configuration for compact purchase systems
  • Low-friction, fast-rolling performance
  • Lightweight and durable construction
  • Patented Dynamic Bearing System with twin rows of stainless-steel ball bearings running on a stainless-steel rail for superior load capacity and longevity
  • Integrated Beckets with large central rivets, providing lightweight and rope-friendly attachment points for cascade systems
  • Ideal for applications requiring smooth, efficient line handling and continuous sheave movement
  • Suitable for use with smaller diameter rope lines
Accessories Linked
Bearing type Dynamic
Brand Allen
Breaking load kg 540
Configuration Back to Back
Iges GenericFileDrop
Iges file link https://abassets.ams3.digitaloceanspaces.com/iges/a2029.igs
Length mm 70
Maximum line diameter mm 6
Maximum working load kg 115
Pdf GenericFileDrop
Pdf ref link https://abassets.ams3.digitaloceanspaces.com/product_files/a2029-ref.pdf
Related collection CollectionDrop
Sheave diameter mm 20
Short description Linked Singles
