A2030XHL-B

30mm Single XHL Block

30mm Single XHL Block

£136.22 ex VAT £163.46 inc VAT
ex VAT £0.00 inc VAT £136.22 ex VAT £163.46 inc VAT
Sale Sold out
Shipping calculated at checkout.

In stock - 24 units(Can be backordered)

Require larger quantities? Contact us

Stockists

Delivery

Fast UK delivery from £4.50 or FREE when spending over £100.
More Info

View full details

Description

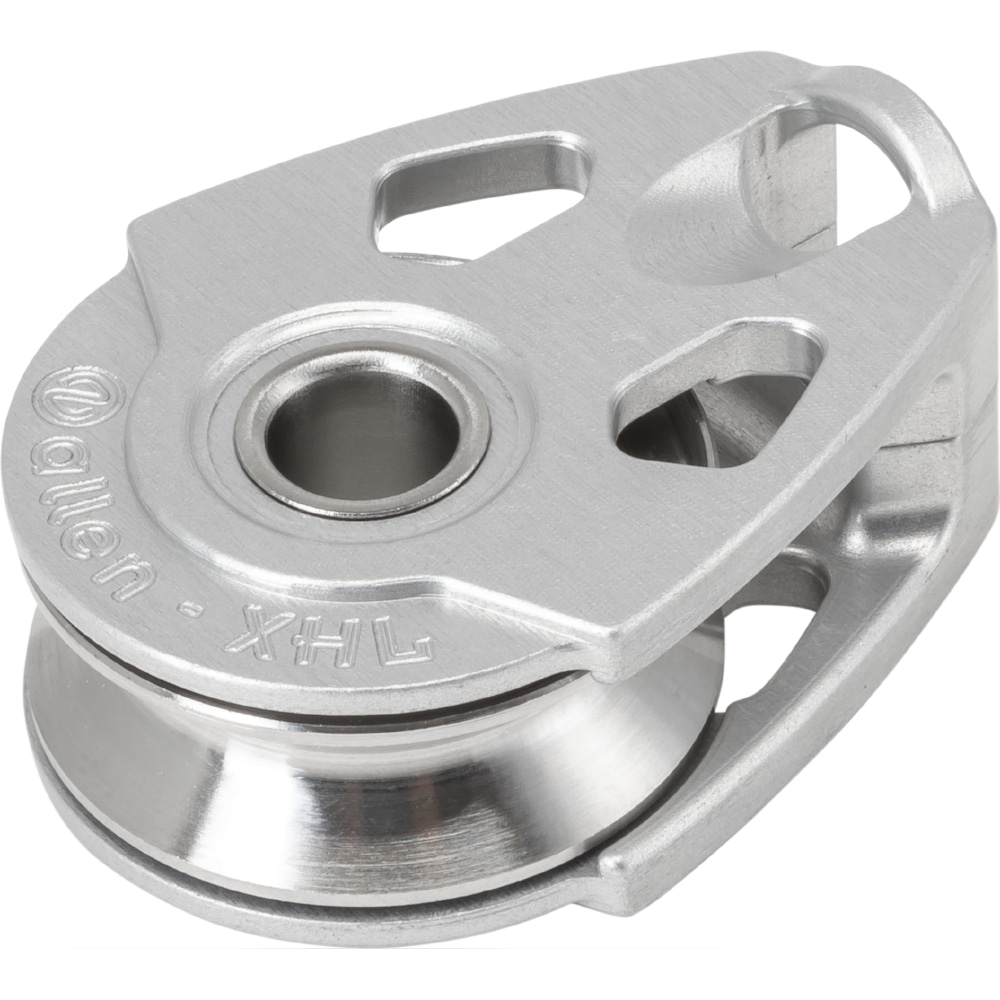

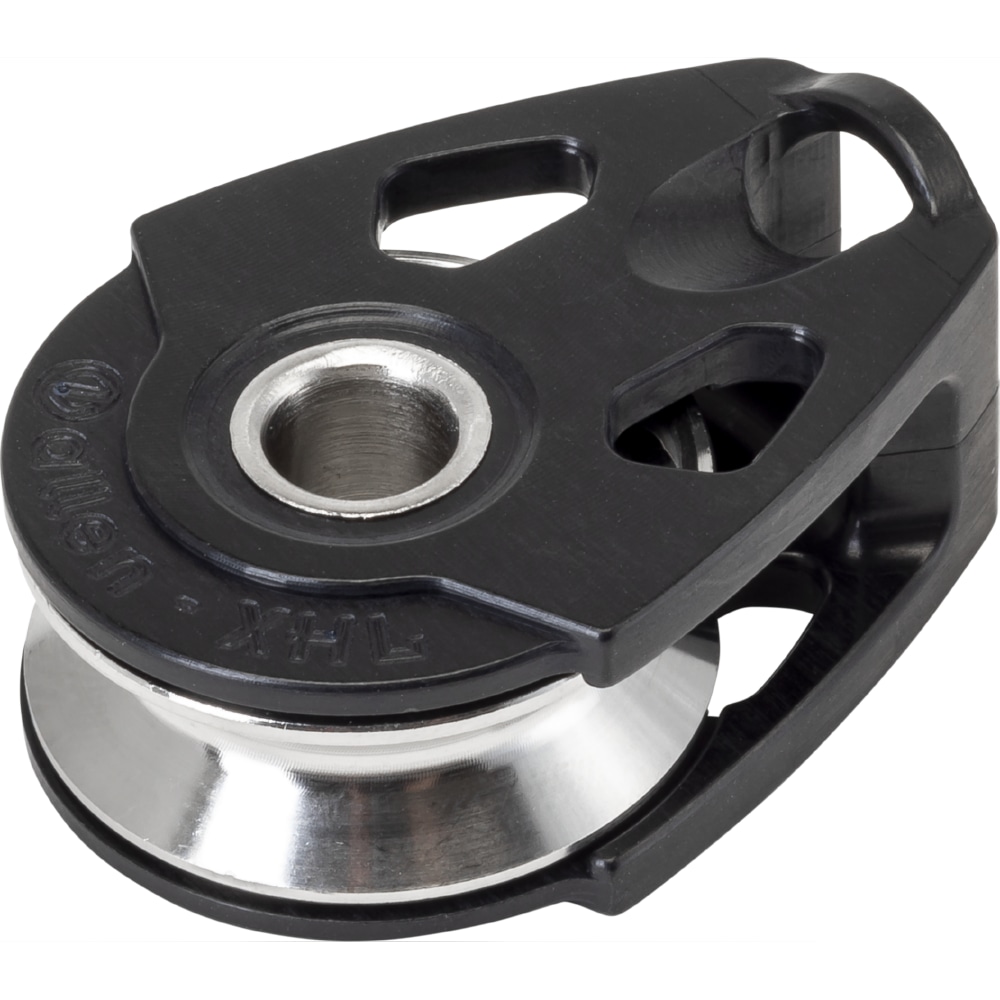

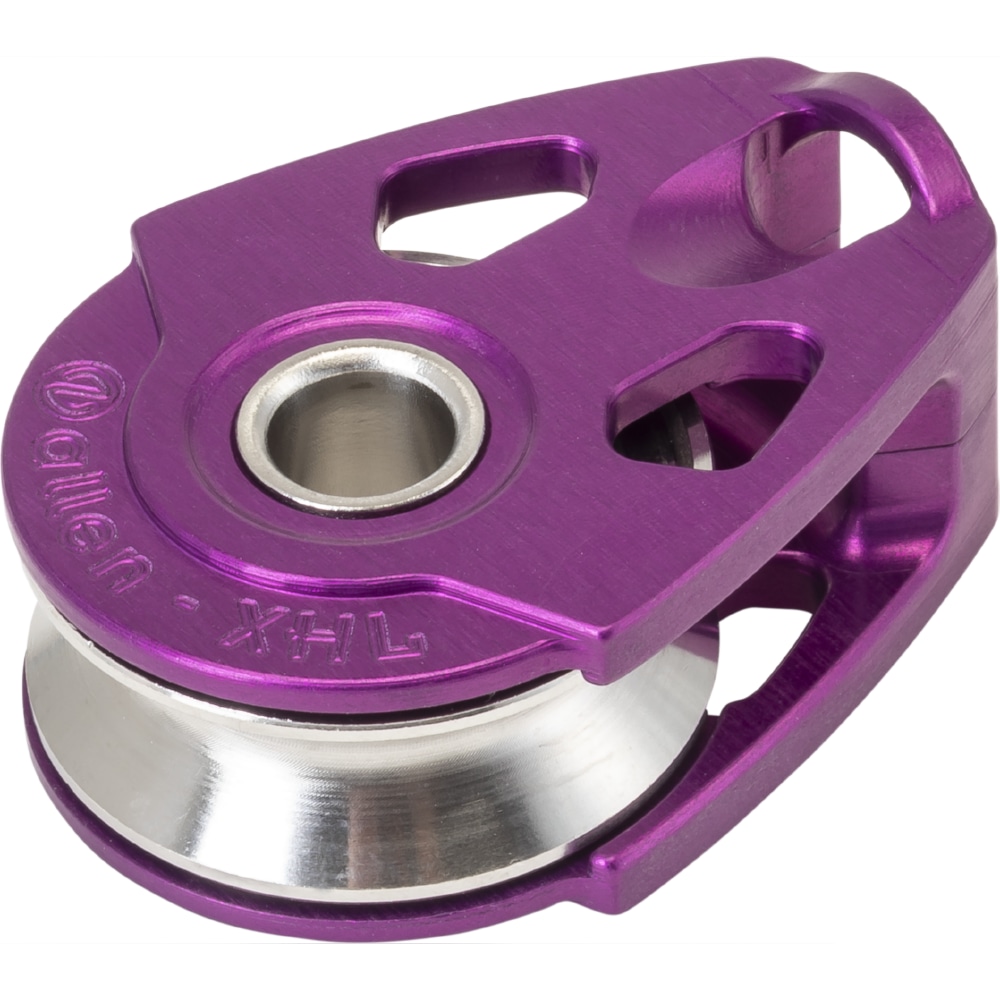

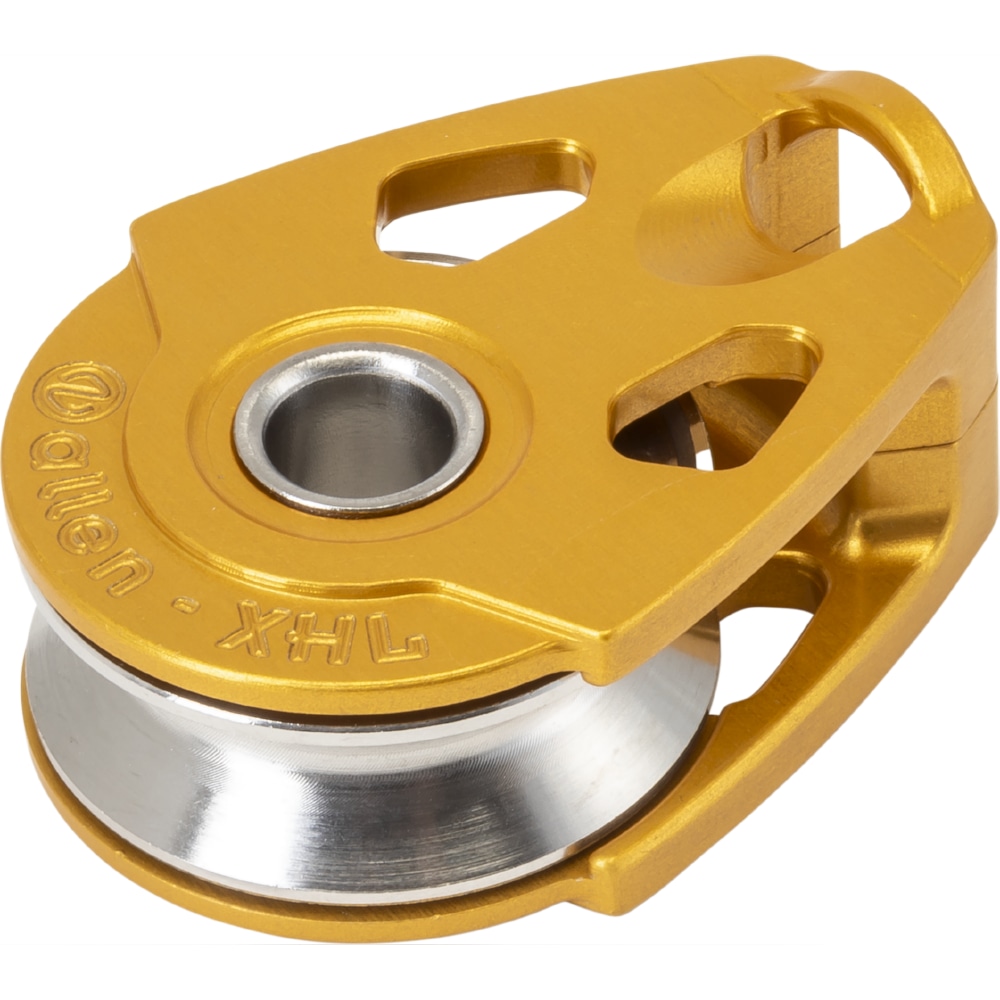

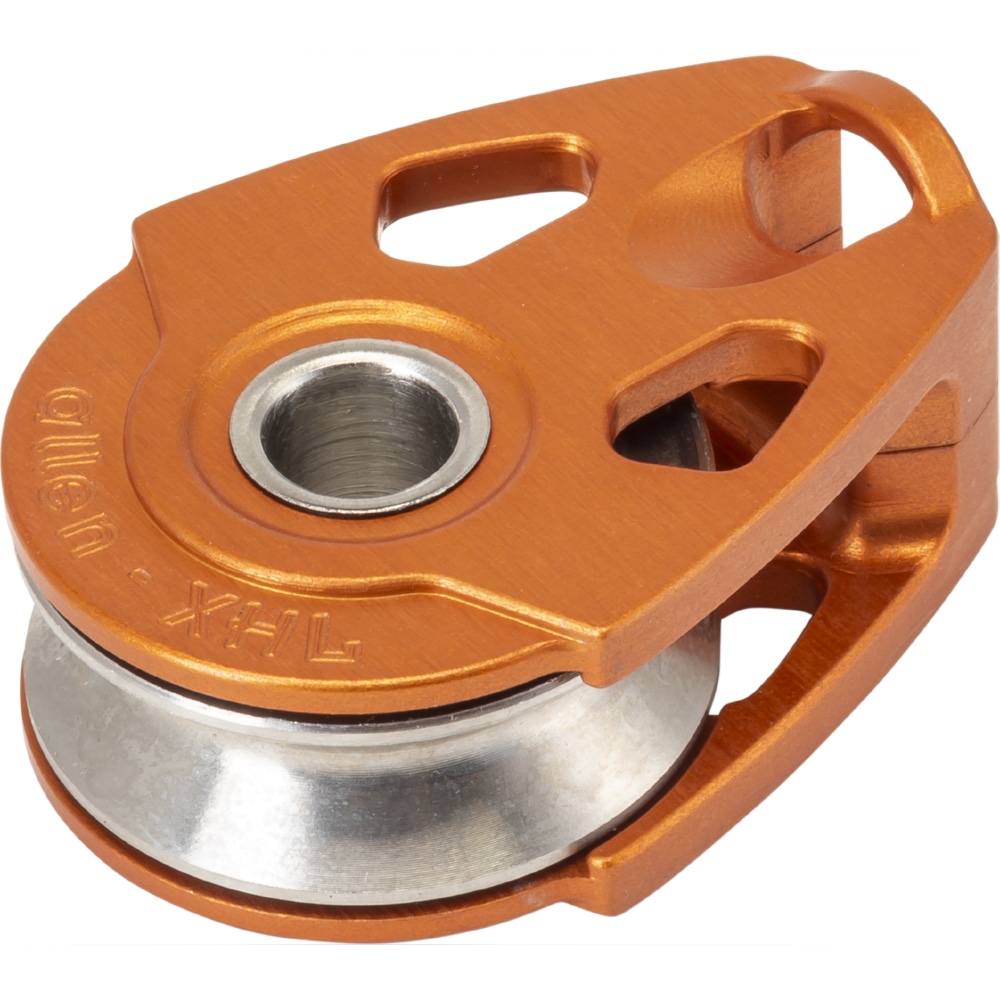

30mm Single Extreme High Load Block

The 30mm Single Extreme High Load (XHL) Block has been engineered to handle exceptionally high static loads without compromising low-load dynamic performance. Ideal for applications such as vang cascades, halyard turning points, and other highly loaded control systems, it delivers reliable performance where both strength and efficiency are critical.

The innovative XHL Bearing System combines Allen's proven Dynamic Bearing Technology with a precision PEEK plain bearing washer, allowing the block to withstand extreme loads while protecting bearing performance.

Key Features

  • Designed for exceptionally high-load applications
  • Ideal for vang cascades, halyard turning points, and high-load control systems
  • XHL Bearing Technology combines twin rows of stainless-steel ball bearings with a precision PEEK plain bearing washer
  • Maintains smooth, low-load dynamic performance under extreme static loads
  • CNC-machined aluminium side cheeks for maximum strength and durability
  • Precision-turned stainless-steel sheave for efficient load handling and long service life
  • 1250kg breaking load
  • Engineered for demanding marine applications where reliability and performance are essential
Accessories Tii-On
Bearing type XHL
Brand Allen
Breaking load kg 1250
Colour Blue
Configuration Single
Height mm 15
Length mm 43
Maximum line diameter mm 8
Maximum working load kg 500
Related collection CollectionDrop
Sheave diameter mm 30
Width mm 30
Swipe
SKU Title Breaking Load Kg Max Working Load Kg Hole Pitch mm Length mm Max Line Dia mm Pin Size mm Weight (g) Price
A2020-30

20mm & 30mm Single Dynamic Blocks - Linked

 540 115 - 80 8 - 37
£26.84 ex VAT £32.21 inc VAT
ex VAT £0.00 inc VAT £26.84 ex VAT £32.21 inc VAT
A2038

30mm Back To Back Dynamic Block

 750 140 - 78 8 - 50
£45.40 ex VAT £54.48 inc VAT
ex VAT £0.00 inc VAT £45.40 ex VAT £54.48 inc VAT
A2038HL

30mm Back To Back High Load Block

 750 600 - 78 8 - 77
£85.59 ex VAT £102.71 inc VAT
ex VAT £0.00 inc VAT £85.59 ex VAT £102.71 inc VAT
A2032

30mm Double Dynamic Block

 1250 280 - 63 8 - 73
£41.07 ex VAT £49.28 inc VAT
ex VAT £0.00 inc VAT £41.07 ex VAT £49.28 inc VAT
A2032A

30mm Double Dynamic Block - Articulating

 1250 280 - 63 8 - 64
£43.34 ex VAT £52.01 inc VAT
ex VAT £0.00 inc VAT £43.34 ex VAT £52.01 inc VAT
A2033

30mm Double Dynamic Block - Becket

 1250 280 - 76 8 - 77
£42.66 ex VAT £51.19 inc VAT
ex VAT £0.00 inc VAT £42.66 ex VAT £51.19 inc VAT
A2136M

30mm Double Dynamic Block - Composite Cheek

 400 280 30 50 8 - 36
£38.04 ex VAT £45.65 inc VAT
ex VAT £0.00 inc VAT £38.04 ex VAT £45.65 inc VAT
A4111

30mm Double Dynamic Block - Upstand

 850 140 47 x 25 45 8 - 45
£60.14 ex VAT £72.17 inc VAT
ex VAT £0.00 inc VAT £60.14 ex VAT £72.17 inc VAT
A2132

30mm Double Dynamic Through Deck Block

 500 140 90 77 8 - 45
£45.37 ex VAT £54.44 inc VAT
ex VAT £0.00 inc VAT £45.37 ex VAT £54.44 inc VAT
A2032HL

30mm Double High Load Block

 1250 450 - 63 8 - 86
£81.18 ex VAT £97.42 inc VAT
ex VAT £0.00 inc VAT £81.18 ex VAT £97.42 inc VAT
A2136MHL

30mm Double High Load Block - Composite Cheek

 400 300 30 50 8 - 59
£60.42 ex VAT £72.50 inc VAT
ex VAT £0.00 inc VAT £60.42 ex VAT £72.50 inc VAT
A2032TiiHL

30mm Double High Load Block - Tii-On

 1100 300 - 41.5 8 - 59
£82.27 ex VAT £98.72 inc VAT
ex VAT £0.00 inc VAT £82.27 ex VAT £98.72 inc VAT
A2036-PROFIX

30mm Profix Cheek Adaptor

 - 3.8 - - - - 5
£11.61 ex VAT £13.93 inc VAT
ex VAT £0.00 inc VAT £11.61 ex VAT £13.93 inc VAT
A2030

30mm Single Dynamic Block

 750 140 - 49 8 - 27
£14.91 ex VAT £17.89 inc VAT
ex VAT £0.00 inc VAT £14.91 ex VAT £17.89 inc VAT
A2031-90S

30mm Single Dynamic Block - 90°

 250 140 - 54.6 8 - 32
£21.60 ex VAT £25.92 inc VAT
ex VAT £0.00 inc VAT £21.60 ex VAT £25.92 inc VAT
A2031F

30mm Single Dynamic Block - Articulating Fork

 450 140 - 59 8 4 36
£19.72 ex VAT £23.66 inc VAT
ex VAT £0.00 inc VAT £19.72 ex VAT £23.66 inc VAT
A2036M

30mm Single Dynamic Block - Composite Cheek

 400 140 30 50 8 - 23
£19.73 ex VAT £23.68 inc VAT
ex VAT £0.00 inc VAT £19.73 ex VAT £23.68 inc VAT
A2039FIDDLE

30mm Single Dynamic Block - Fiddle

 600 140 - 85 8 4 45
£77.35 ex VAT £92.82 inc VAT
ex VAT £0.00 inc VAT £77.35 ex VAT £92.82 inc VAT
A2039-CAM

30mm Single Dynamic Block - Fiddle, Cleat

 600 140 - 88 8 4 86
£97.31 ex VAT £116.77 inc VAT
ex VAT £0.00 inc VAT £97.31 ex VAT £116.77 inc VAT
A2039-CAM-LDC

30mm Single Dynamic Block - Fiddle, Cleat, Hook, Becket

 600 140 - 100 8 - 86
£86.77 ex VAT £104.12 inc VAT
ex VAT £0.00 inc VAT £86.77 ex VAT £104.12 inc VAT
A2030F

30mm Single Dynamic Block - Fork

 450 140 - 56 8 5 32
£19.72 ex VAT £23.66 inc VAT
ex VAT £0.00 inc VAT £19.72 ex VAT £23.66 inc VAT
A2030F-873

30mm Single Dynamic Block - ILCA

 450 140 - 77 8 5 41
£26.49 ex VAT £31.79 inc VAT
ex VAT £0.00 inc VAT £26.49 ex VAT £31.79 inc VAT
A2039

30mm Single Dynamic Block - Linked

 750 140 - 94 8 - 50
£31.59 ex VAT £37.91 inc VAT
ex VAT £0.00 inc VAT £31.59 ex VAT £37.91 inc VAT
A2030R2

30mm Single Dynamic Block - Linked, Ring

 750 140 - - 8 - 82
£34.86 ex VAT £41.83 inc VAT
ex VAT £0.00 inc VAT £34.86 ex VAT £41.83 inc VAT
A2030R3

30mm Single Dynamic Block - Linked, Ring

 750 140 - - 8 - 109
£52.07 ex VAT £62.48 inc VAT
ex VAT £0.00 inc VAT £52.07 ex VAT £62.48 inc VAT
A2031

30mm Single Dynamic Block - Multi Function

 500 140 - 47 8 4 27
£13.50 ex VAT £16.20 inc VAT
ex VAT £0.00 inc VAT £13.50 ex VAT £16.20 inc VAT
A2036

30mm Single Dynamic Block - Profix Cheek

 500 140 - 59 8 4 36
£21.60 ex VAT £25.92 inc VAT
ex VAT £0.00 inc VAT £21.60 ex VAT £25.92 inc VAT
A2030LZ

30mm Single Dynamic Block - Stand Up

 500 140 34 59 8 - 32
£22.71 ex VAT £27.25 inc VAT
ex VAT £0.00 inc VAT £22.71 ex VAT £27.25 inc VAT
A2030SC

30mm Single Dynamic Block - Swivel

 450 140 - 66 8 4 36
£37.71 ex VAT £45.25 inc VAT
ex VAT £0.00 inc VAT £37.71 ex VAT £45.25 inc VAT
A2030SHK

30mm Single Dynamic Block - Swivel, Hook

 450 140 - 70 8 - 36
£36.91 ex VAT £44.29 inc VAT
ex VAT £0.00 inc VAT £36.91 ex VAT £44.29 inc VAT
A2030Tii

30mm Single Dynamic Block - Tii-On

 750 140 - 42 8 - 23
From £14.91 ex VAT £17.89 inc VAT
ex VAT £0.00 inc VAT From £14.91 ex VAT £17.89 inc VAT
A2134

30mm Single Dynamic Block - Upstand

 600 140 28.6 39 8 - 36
£33.88 ex VAT £40.66 inc VAT
ex VAT £0.00 inc VAT £33.88 ex VAT £40.66 inc VAT
A4101

30mm Single Dynamic Block - Upstand

 850 140 25 45 8 - 59
£33.88 ex VAT £40.66 inc VAT
ex VAT £0.00 inc VAT £33.88 ex VAT £40.66 inc VAT
A2031SC

30mm Single Dynamic Block -Swivel, Fork

 400 140 - 63 8 4 36
£28.58 ex VAT £34.30 inc VAT
ex VAT £0.00 inc VAT £28.58 ex VAT £34.30 inc VAT
A2131

30mm Single Dynamic Through Deck Block

 500 140 60 47 8 - 26
£30.23 ex VAT £36.28 inc VAT
ex VAT £0.00 inc VAT £30.23 ex VAT £36.28 inc VAT
A2030HL

30mm Single High Load Block

 800 300 - 49 8 - 41
£34.97 ex VAT £41.96 inc VAT
ex VAT £0.00 inc VAT £34.97 ex VAT £41.96 inc VAT
A2036MHL

30mm Single High Load Block - Composite Cheek

 400 300 30 50 8 - 36
£28.68 ex VAT £34.42 inc VAT
ex VAT £0.00 inc VAT £28.68 ex VAT £34.42 inc VAT
A2030HLF

30mm Single High Load Block - Fork

 450 300 - 56 8 5 41
£39.79 ex VAT £47.75 inc VAT
ex VAT £0.00 inc VAT £39.79 ex VAT £47.75 inc VAT
A2030HLF-873

30mm Single High Load Block - ILCA

 750 300 - 77 8 5 50
£46.56 ex VAT £55.87 inc VAT
ex VAT £0.00 inc VAT £46.56 ex VAT £55.87 inc VAT
A2036HL

30mm Single High Load Block - Profix Cheek

 500 300 38.6 58.8 8 4 41
£41.66 ex VAT £49.99 inc VAT
ex VAT £0.00 inc VAT £41.66 ex VAT £49.99 inc VAT
A2030TiiHL

30mm Single High Load Block - Tii-On

 800 300 - 41 8 - 36
From £34.97 ex VAT £41.96 inc VAT
ex VAT £0.00 inc VAT From £34.97 ex VAT £41.96 inc VAT
A9030

30mm Single TiiTAN Block

 1250 500 - 40.64 8 - 27
£178.62 ex VAT £214.34 inc VAT
ex VAT £0.00 inc VAT £178.62 ex VAT £214.34 inc VAT
A9031-873

30mm Single TiiTAN Block - ILCA

 1000 500 - 68.8 8 5 41
£184.57 ex VAT £221.48 inc VAT
ex VAT £0.00 inc VAT £184.57 ex VAT £221.48 inc VAT
A2030XHL-B

30mm Single XHL Block

 1250 500 - 43 8 - 41
£136.22 ex VAT £163.46 inc VAT
ex VAT £0.00 inc VAT £136.22 ex VAT £163.46 inc VAT
A2031XHL-873-B

30mm Single XHL Block - ILCA Vang

 1000 450 - 57 8 - 54
£142.97 ex VAT £171.56 inc VAT
ex VAT £0.00 inc VAT £142.97 ex VAT £171.56 inc VAT
A2034

30mm Triple Dynamic Block

 1750 490 - 63 8 - 104
£53.74 ex VAT £64.49 inc VAT
ex VAT £0.00 inc VAT £53.74 ex VAT £64.49 inc VAT
A2034A

30mm Triple Dynamic Block - Articulating

 1750 490 - 63 8 - 82
£56.00 ex VAT £67.20 inc VAT
ex VAT £0.00 inc VAT £56.00 ex VAT £67.20 inc VAT
A2035

30mm Triple Dynamic Block - Becket

 1750 420 - 83 8 - 113
£62.83 ex VAT £75.40 inc VAT
ex VAT £0.00 inc VAT £62.83 ex VAT £75.40 inc VAT
A2037

30mm Triple Dynamic Block - Cleat, Becket

 1750 490 - 83 8 - 145
£114.76 ex VAT £137.71 inc VAT
ex VAT £0.00 inc VAT £114.76 ex VAT £137.71 inc VAT
A2034-676

30mm Triple Dynamic Block - Inverted Cleat

 1750 490 - 65 8 - 50
£105.69 ex VAT £126.83 inc VAT
ex VAT £0.00 inc VAT £105.69 ex VAT £126.83 inc VAT
A2035-676

30mm Triple Dynamic Block - Inverted Cleat, Becket

 1750 490 - 83 8 - 145
£114.76 ex VAT £137.71 inc VAT
ex VAT £0.00 inc VAT £114.76 ex VAT £137.71 inc VAT
A2034HL

30mm Triple High Load Block

 1750 650 - 63 8 - 132
£113.91 ex VAT £136.69 inc VAT
ex VAT £0.00 inc VAT £113.91 ex VAT £136.69 inc VAT
