Pro-Ratchet 60 With Cheek Adaptor
Pro-Ratchet 60 With Cheek Adaptor
PDF drawing
IGES file link

Pro-Ratchet 60 With Cheek Adaptor

A2160C

(1 customer review)

£114.20

Single Switchable Ratchet With Cheek Adaptor

View more details

1 in stock (can be backordered)

By adding this item to my basket I agree I have read and understood the terms and conditions of sale.
Stockists

Returns and refunds

SKU: A2160C Category:

Description

Pro-Ratchet 60 Cheek Block

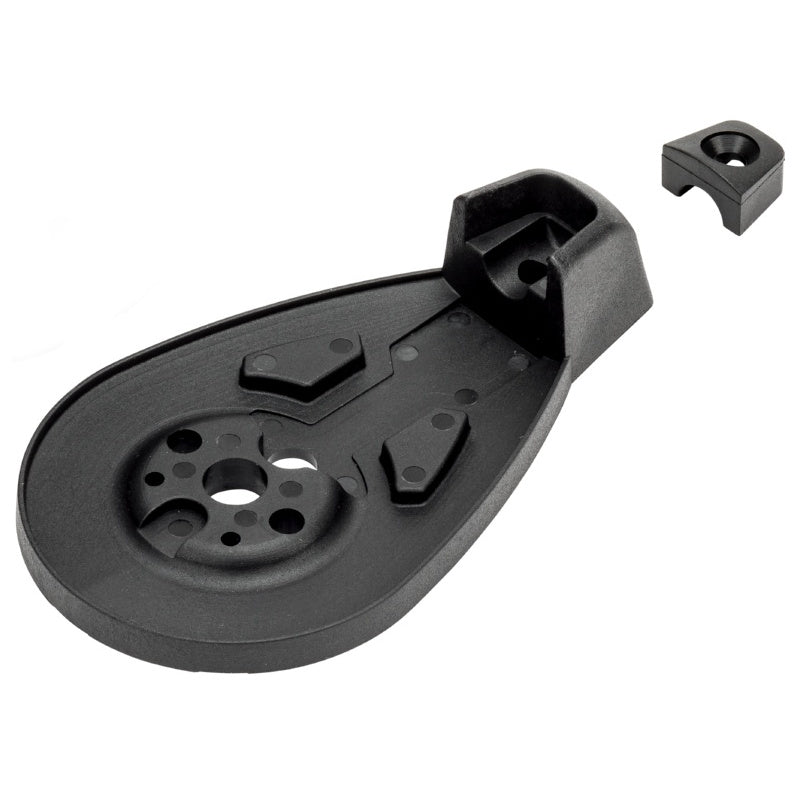

This cheek block version comes with a cheek adaptor side plate, to allow mounting to any flat surface.

Three screws are required to complete installation.

Switchable – In the middle of the block is a switch that can be used, even under load, to turn the ratchet mechanism on or off. Giving you more control and feel of your control system.

Extreme Hold – The Pro-Ratchet 60 features a hardwearing nylon sheave with eight V grips to give extreme holding power on all lines. For maximum performance, we recommend pairing this ratchet block with 7mm Excel Marstron Plus.

Click the PDF above to see all the technical details.

1 review for Pro-Ratchet 60 With Cheek Adaptor

  1. C.Jozefa –

    The cheek adaption plate is good. No problems fitting this to the deck of my boat.

Add a review

This site uses Akismet to reduce spam. Learn how your comment data is processed.

Pro-Ratchet 60 With Cheek Adaptor

SKU Title Sheave Diameter mmMaximum Line Diameter mmShackle Pin mmBreaking Load KgTrigger Load KgMaximum Working Load Kg Length mm Weight g Price
A2140 Single Switchable Ratchet 4064475-120 78 78 £46.34
A2150 Pro-Ratchet 50 5085700-200 95 95 £85.00
A2160C Pro-Ratchet 60 With Cheek Adaptor 601051000-275 108 108 £114.20
A2160 Pro-Ratchet 60 601051000-275 110 110 £90.00
A2058 Triple With Switchable Ratchet & Adjustable Cleat 5084950-470 120 120 £190.00
A2150FIDDLE Pro-Ratchet 50 With Fiddle 5085700-200 126 126 £95.00
A2160FIDDLE Pro-Ratchet 60 With Fiddle 601051000-275 150 150 £110.00
A2159 Quint With Ratchet And Adjustable Cleat 5084950-470 136 136 £350.00
A2151 Single Switchable Ratchet With Becket & Cleat 5084700-200 136 136 £130.00
A2161 Single Switchable Ratchet With Becket & Cleat 601051000-275 127 127 £140.00
A.622 Spring Guard For Ratchets ------ 200 200 £2.57
A2345 X2 AutoRatchet 45 458428010140 90 90 £80.00
A2360 X2 AutoRatchet 60 60105100010275 110 110 £105.00
A2169 Quint With Ratchet And Adjustable Cleat 601261250-600 148 148 £450.00
A2068 Triple With Switchable Ratchet & Adjustable Cleat 601251250-600 145 145 £210.00
A2150C Pro-Ratchet 50 With Cheek Adaptor 5084700-200 92 92 £104.53
A2160WAVE Pro-Ratchet 60 With Wave Sheave 601051000-275 110 110 £90.00
A2360WAVE X2 AutoRatchet 60 With Wave Sheave 60105100010275 110 110 £105.00
A2345Tii X2 Tii AutoRatchet 45 458-26010140 £86.24
A21401 Pro-Ratchet 40 4064600-180 £80.00
A21401B Pro-Ratchet 40 With Becket 4064600-180 £85.00
A21403-77 Triple with Ratchet & Adjustable Cleat 40651400-180 £210.00
A21403B-77 Triple With Becket, Ratchet & Adjustable Cam Cleat 40651400-180 £215.00
