Range / Shackles / strip shackles

Strip Shackle with 5mm Key Pin & Halyard Retaining Pin
Strip Shackle with 5mm Key Pin & Halyard Retaining Pin
PDF drawing
IGES file link

Strip Shackle with 5mm Key Pin & Halyard Retaining Pin

A6075

£8.46

Shackle With Key Pin And Extra Pin & Ring

View more details

15 in stock (can be backordered)

By adding this item to my basket I agree I have read and understood the terms and conditions of sale.
Stockists

Returns and refunds

SKU: A6075 Category:

Description

Strip Shackle with 5mm Key Pin and Halyard Retaining Pin

Marine Grade 316 Stainless Steel Strip Shackle.

This strip shackle is manufactured from premium marine grade 316 stainless steel for outstanding corrosion resistance and long-lasting durability. Perfect for use in saltwater environments, it’s ideal for sailing, marine rigging, and general marine applications.

Precision-engineered for strength and performance, it’s a dependable choice for both professional and recreational use.

Key Features:

5mm Key Shaped Locking Pin

Removable “halyard retaining” clevis pin.

High-quality 316 stainless steel construction.

Excellent corrosion resistance for marine environments.

Strong and durable under load.

Low-profile design for versatile applications.

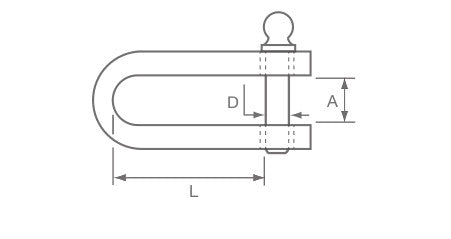

Click the PDF logo to open a detailed technical drawing.

Reviews

There are no reviews yet.

Be the first to review “Strip Shackle with 5mm Key Pin & Halyard Retaining Pin”

This site uses Akismet to reduce spam. Learn how your comment data is processed.

Strip Shackle with 5mm Key Pin & Halyard Retaining Pin

SKU Title Internal Length mmOpening mmPin Diameter mmBreaking Load Kg Length mm Weight g Price
A6020 D Strip Shackle with 4mm Screw Pin 15104500 200 4 £8.46
A6022 D Strip Shackle with 5mm Screw Pin 171251000 200 8 £8.46
A6023 D Strip Shackle with 5mm Screw Pin 241551000 200 15 £8.46
A6024 D Strip Shackle with 5mm Screw Pin 361651200 200 16 £8.46
A6035 D Strip Shackle with 4mm Slotted Screw Pin 15104500 200 4 £8.46
A6037 D Strip Shackle with 5mm Slotted Screw Pin 171251000 200 8 £8.46
A6038 D Strip Shackle with 5mm Slotted Screw Pin 241551000 200 14 £8.46
A6039 D Strip Shackle with 5mm Slotted Screw Pin 361651200 200 0 £8.46
A6040 D Strip Shackle with 5mm Slotted Screw Pin 251251200 200 10 £8.46
A6065 D Strip Shackle with 4mm Key Pin 17114600 200 4 £8.46
A6066 D Strip Shackle with 5mm Key Pin 361551200 200 12 £8.46
A6067 D Strip Shackle with 5mm Key Pin 261351200 200 15 £8.46
A6068 D Strip Shackle with 6mm Key Pin 401562000 200 25 £8.46
A6069 D Strip Shackle with 6mm Key Pin 251462000 200 0 £8.46
A6075 Strip Shackle with 5mm Key Pin & Halyard Retaining Pin 12235700 200 14 £8.46
A6076 Strip Shackle with 5mm Key Pin & Halyard Retaining Pin 15335700 200 17 £8.46
A6077 Strip Shackle with 6mm Key Pin & Halyard Retaining Pin 142361500 200 27 £8.46
A6078 Strip Shackle with 8mm Key Pin & Halyard Retaining Pin 203882000 200 49 £8.46
A6045 Bow Strip Shackle with 6mm Screw Pin 231562000 200 0 £8.46
A6046 Bow Strip Shackle with 8mm Screw Pin 321783000 200 39 £8.46
A6047 Bow Strip Shackle with 10mm Screw Pin 4021105000 200 0 £8.46
A6060 Twisted Strip Shackle with 5mm Screw Pin 221251200 200 11 £8.46
A6061 Twisted Strip Shackle with 5mm Screw Pin 331251200 200 15 £8.46
A6062 Twisted Strip Shackle with 6mm Screw Pin 361462000 200 25 £8.46
A6027 D Strip Shackle with 6mm Screw Pin 241661200 200 16 £8.46
A6028 D Strip Shackle with 6mm Screw Pin 401561200 200 25 £8.46
