A.485

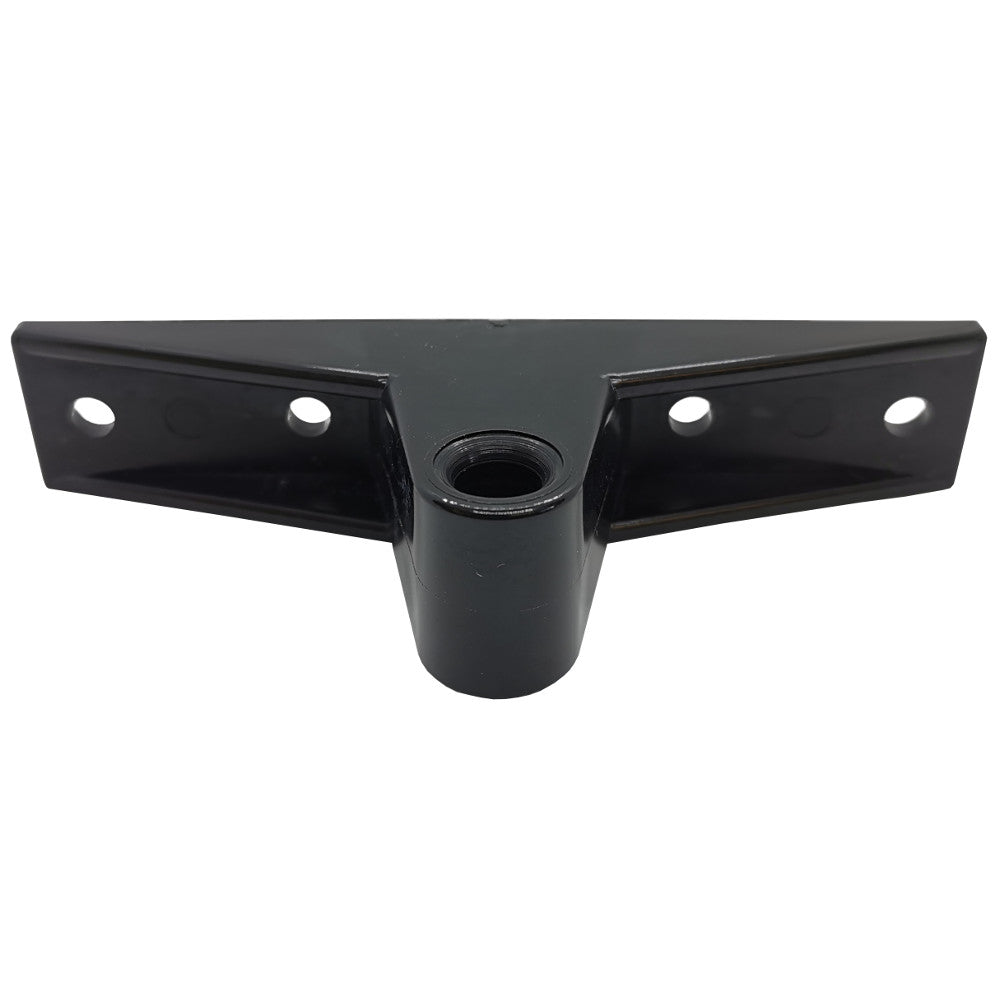

Laser/ ILCA Gudgeon

Laser/ ILCA Gudgeon

£4.65 ex VAT £5.58 inc VAT
ex VAT £0.00 inc VAT £4.65 ex VAT £5.58 inc VAT
Sale Sold out
Shipping calculated at checkout.

In stock - 602 units(Can be backordered)

Require larger quantities? Contact us

Stockists

Delivery

Fast UK delivery from £4.50 or FREE when spending over £100.
More Info

View full details
Product Datasheet Download Product Datasheet Download

Description

ILCA Class Legal Plastic Transom Gudgeon
Specifically designed to meet the strict requirements of ILCA (Laser) racing, this Plastic Transom Gudgeon ensures optimal performance and compliance for your ILCA dinghy. Built from high-strength, lightweight plastic, this gudgeon is both durable and corrosion-resistant, making it ideal for the demanding environments of competitive sailing. Engineered with precision to fit ILCA rudder systems, it guarantees smooth, reliable rudder operation while remaining fully class legal.
ILCA Class Legal
: Approved for ILCA/Laser class racing, ensuring full compliance with class rules.
Material
: High-strength plastic for a lightweight and durable solution.
Hole Diameter
: 9.5mm, compatible with standard ILCA pintles.
Corrosion-Resistant
: Withstands saltwater, UV exposure, and rough conditions.
Exact Fit
: Designed to match the precise specifications of ILCA dinghies for secure rudder attachment and smooth pivoting.
Click the PDF logo above to open a detailed technical drawing.

Brand Allen
Fixing hole diameter mm 6
Height mm 46.05
Hole pin diameter mm 10
Hole pitch mm 110.9
Iges GenericFileDrop
Iges file link https://abassets.ams3.digitaloceanspaces.com/iges/a-485.igs
Length mm 30
Pdf GenericFileDrop
Pdf ref link https://abassets.ams3.digitaloceanspaces.com/product_files/a-485-ref_3.pdf
Related collection CollectionDrop
Transom to pin centre mm 36
Width mm 130
Swipe
SKU Title Fixing Hole Dia mm Hole / Pin Dia mm Hole Pitch mm Length mm Pin Length mm Transom To Pin Centre mm Width mm Weight (g) Price
A.519-10H

Four Hole Transom Pintle With 10mm Pin

 6.3 9.95 50.3 x 25 97 57 18 72 95
£22.87 ex VAT £27.44 inc VAT
ex VAT £0.00 inc VAT £22.87 ex VAT £27.44 inc VAT
A4022

Large Transom Gudgeon

 6 8 - - - 43 120 -
£25.21 ex VAT £30.25 inc VAT
ex VAT £0.00 inc VAT £25.21 ex VAT £30.25 inc VAT
A.485

Laser/ ILCA Gudgeon

 6 10 110.9 30 - 36 130 36
£4.65 ex VAT £5.58 inc VAT
ex VAT £0.00 inc VAT £4.65 ex VAT £5.58 inc VAT
A7001

One Piece Pintle & Gudeon For A7000

 5 7.59 176 x 54 28 47 18 71.9 100
£133.67 ex VAT £160.40 inc VAT
ex VAT £0.00 inc VAT £133.67 ex VAT £160.40 inc VAT
A4420

Optimist Transom Gudgeon

 4 6.3 30 30.6 - 24 44 23
£17.52 ex VAT £21.02 inc VAT
ex VAT £0.00 inc VAT £17.52 ex VAT £21.02 inc VAT
A.619

Pintle Packing Spacer

 - - 50 5 - - 71 5
£4.80 ex VAT £5.76 inc VAT
ex VAT £0.00 inc VAT £4.80 ex VAT £5.76 inc VAT
A.420

Transom Gudgeon

 5 8 110 30 - 39 131 41
£4.65 ex VAT £5.58 inc VAT
ex VAT £0.00 inc VAT £4.65 ex VAT £5.58 inc VAT
A.520

Transom Gudgeon

 5 8 50 28 - 19 72.5 27
£9.93 ex VAT £11.92 inc VAT
ex VAT £0.00 inc VAT £9.93 ex VAT £11.92 inc VAT
A.520-10

Transom Gudgeon

 5 10 50 28 - 16 72.5 27
£9.93 ex VAT £11.92 inc VAT
ex VAT £0.00 inc VAT £9.93 ex VAT £11.92 inc VAT
A4020

Transom Gudgeon

 5 8 51 26.1 - 18 70 23
£6.75 ex VAT £8.10 inc VAT
ex VAT £0.00 inc VAT £6.75 ex VAT £8.10 inc VAT
A4020S

Transom Gudgeon

 5 8 58.7 25.9 - 17 75 41
£19.29 ex VAT £23.15 inc VAT
ex VAT £0.00 inc VAT £19.29 ex VAT £23.15 inc VAT
A4120

Transom Gudgeon

 5 8 42 23.2 - 18 58 18
£6.82 ex VAT £8.18 inc VAT
ex VAT £0.00 inc VAT £6.82 ex VAT £8.18 inc VAT
A.519

Transom Pintle

 5 7.8 50.3 x 25 28 45 19 72 91
£22.35 ex VAT £26.82 inc VAT
ex VAT £0.00 inc VAT £22.35 ex VAT £26.82 inc VAT
A.519-10

Transom Pintle

 5 10 50.3 x 25 - 57 16 70 95
£22.87 ex VAT £27.44 inc VAT
ex VAT £0.00 inc VAT £22.87 ex VAT £27.44 inc VAT
A4019

Transom Pintle

 4 7.8 60.3 x 32.1 - 57 18 80 68
£12.17 ex VAT £14.60 inc VAT
ex VAT £0.00 inc VAT £12.17 ex VAT £14.60 inc VAT
A4019S

Transom Pintle

 4 7.8 58 x 38 x 16 56.9 57 17 75 113
£40.83 ex VAT £49.00 inc VAT
ex VAT £0.00 inc VAT £40.83 ex VAT £49.00 inc VAT
A4317

Transom Pintle

 4 7.8 22 x 25 25.6 37 18 31.8 41
£30.56 ex VAT £36.67 inc VAT
ex VAT £0.00 inc VAT £30.56 ex VAT £36.67 inc VAT
