Product Range
Round Body Shackles
Round body bow shackle with forged pin
Filters:
Body Type
- Bow
- D
- Long D
- Twisted
Pin Diameter mm
- 4
- 5
- 6
- 8
- 10
- Clear All
| SKU | Title | a mm | breaking load kg | d mm | l mm | w mm | Length mm | Weight g | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
 |
A-621104 | D Shackle With 4mm Forged Pin | 9 | 500 | 4 | 16 | - | 16 | 6 | £2.39 |
|

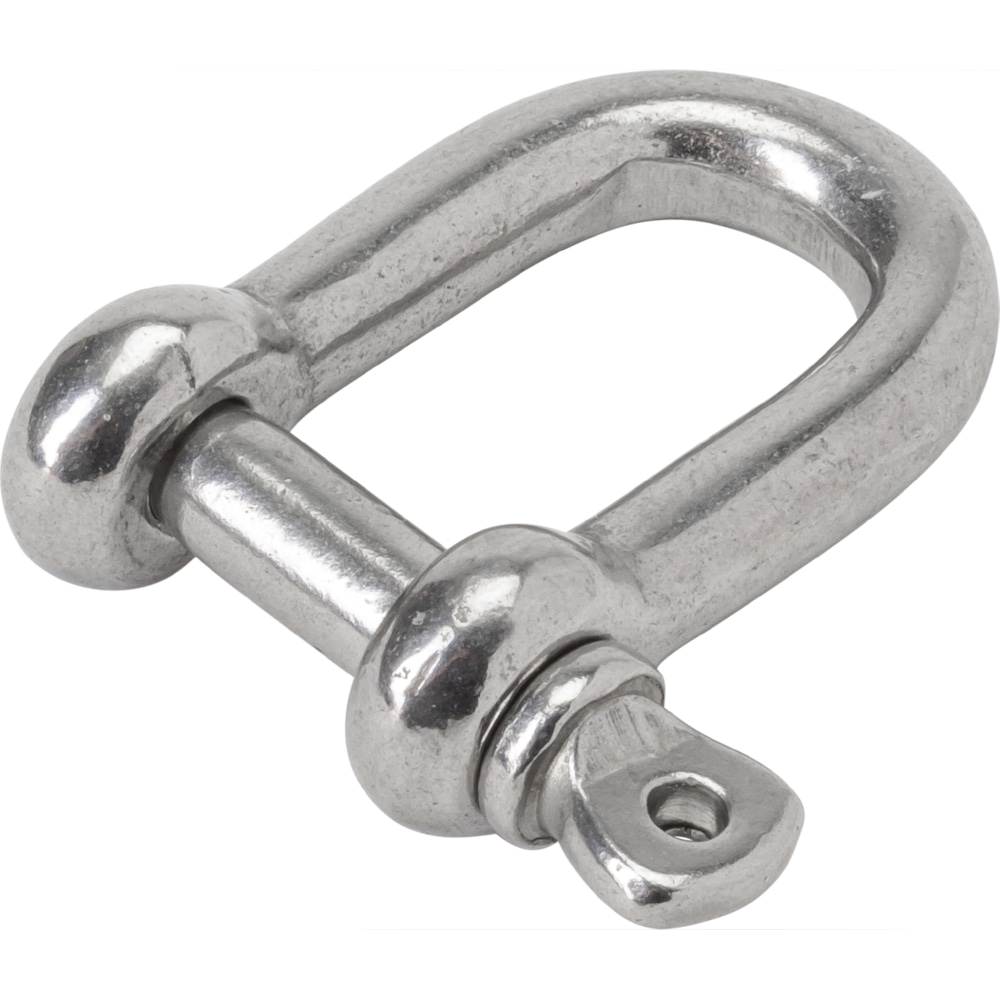

A-621105 | D Shackle With 5mm Forged Pin | 11 | 950 | 5 | 18 | - | - | 13 | £2.6 |
|
A-621106 | D Shackle With 6mm Forged Pin | 13 | 1500 | 6 | 22 | - | 24 | 24 | £3.37 |
|
A-621108 | D Shackle With 8mm Forged Pin | 16 | 2500 | 8 | 32 | - | 32 | 55 | £5.38 |
|
A-621110 | D Shackle With 10mm Forged Pin | 20 | 4100 | 10 | 40 | - | 40 | 109 | £7.72 |
 |
A-622104 | Bow Shackle With 4mm Forged Pin | 8 | 500 | 4 | 20 | 13 | - | 8 | £2.47 |
|
A-622105 | Bow Shackle With 5mm Forged Pin | 11 | 950 | 5 | 23 | 17 | 25 | 15 | £2.98 |
|
A-622106 | Bow Shackle With 6mm Forged Pin | 14 | 1500 | 6 | 27 | 21 | 30 | 26 | £3.23 |
 |
A-622108 | Bow Shackle With 8mm Forged Pin | 18 | 2500 | 8 | 36 | 28 | 41 | 59 | £5.74 |
 |
A-623104 | Long D Shackle With 4mm Forged Pin | 8 | 500 | 4 | 32 | - | 32 | 9 | £2.56 |
|
A-623105 | Long D Shackle With 5mm Forged Pin | 10 | 950 | 5 | 40 | - | 40 | 20 | £3.31 |
|
A-623106 | Long D Shackle With 6mm Forged Pin | 12 | 1500 | 6 | 48 | - | 48 | - | £4.36 |
|
A-623108 | Long D Shackle With 8mm Forged Pin | 17 | 2500 | 8 | 60 | - | 64 | 73 | £7.69 |
|
A-623110 | Long D Shackle With 10mm Forged Pin | 20 | 3000 | 10 | 80 | - | 80 | 8 | £13.08 |
 |
A-624105 | Twisted Shackle With 5mm Forged Pin | 11 | 950 | 5 | 33 | - | 24 | 16 | £3.8 |
|
A-624106 | Twisted Shackle With 6mm Forged Pin | 13 | 1500 | 6 | 33 | - | 30 | 28 | £4.61 |
|
A-624108 | Twisted Shackle With 8mm Forged Pin | 18 | 2500 | 8 | 40 | - | 36 | 65 | £7.37 |
|
A-624110 | Twisted Shackle With 10mm Forged Pin | 16 | 4100 | 10 | 44 | - | 44 | - | £10.66 |
