Product Range
Strip Shackles
Our range of marine grade 316 stainless steel strip shackles offers reliable strength, excellent corrosion resistance, and a compact design ideal for a variety of marine rigging applications. Available in multiple sizes and shapes, they’re perfect for everything from small craft to heavy-duty setups, providing secure, low-profile connections that are easy to install and built to last.
Filters:
Pin Diameter mm
- 4
- 5
- 6
- 8
- 10
Pin Type
- Key
- Slotted
- Standard
Body Type
- Bow
- D
- Retaining
- Twisted
- Clear All
| SKU | Title | breaking load kg | internal length mm | opening mm | pin diameter mm | Length mm | Weight g | Price | |
|---|---|---|---|---|---|---|---|---|---|
 |
A6020 | D Strip Shackle with 4mm Screw Pin | 500 | 15 | 10 | 4 | - | 4 | £1.74 |
 |
A6022 | D Strip Shackle with 5mm Screw Pin | 1000 | 17 | 12 | 5 | - | 8 | £1.97 |
 |
A6023 | D Strip Shackle with 5mm Screw Pin | 1000 | 24 | 15 | 5 | - | 15 | £2.68 |
 |
A6024 | D Strip Shackle with 5mm Screw Pin | 1200 | 36 | 16 | 5 | - | 16 | £3.3 |
 |
A6027 | D Strip Shackle with 6mm Screw Pin | 1200 | 24 | 16 | 6 | - | 16 | £3.3 |
 |
A6028 | D Strip Shackle with 6mm Screw Pin | 1200 | 40 | 15 | 6 | - | 25 | £5.29 |
 |
A6035 | D Strip Shackle with 4mm Slotted Screw Pin | 500 | 15 | 10 | 4 | - | 4 | £1.91 |
|
A6037 | D Strip Shackle with 5mm Slotted Screw Pin | 1000 | 17 | 12 | 5 | - | 8 | £2.14 |
|

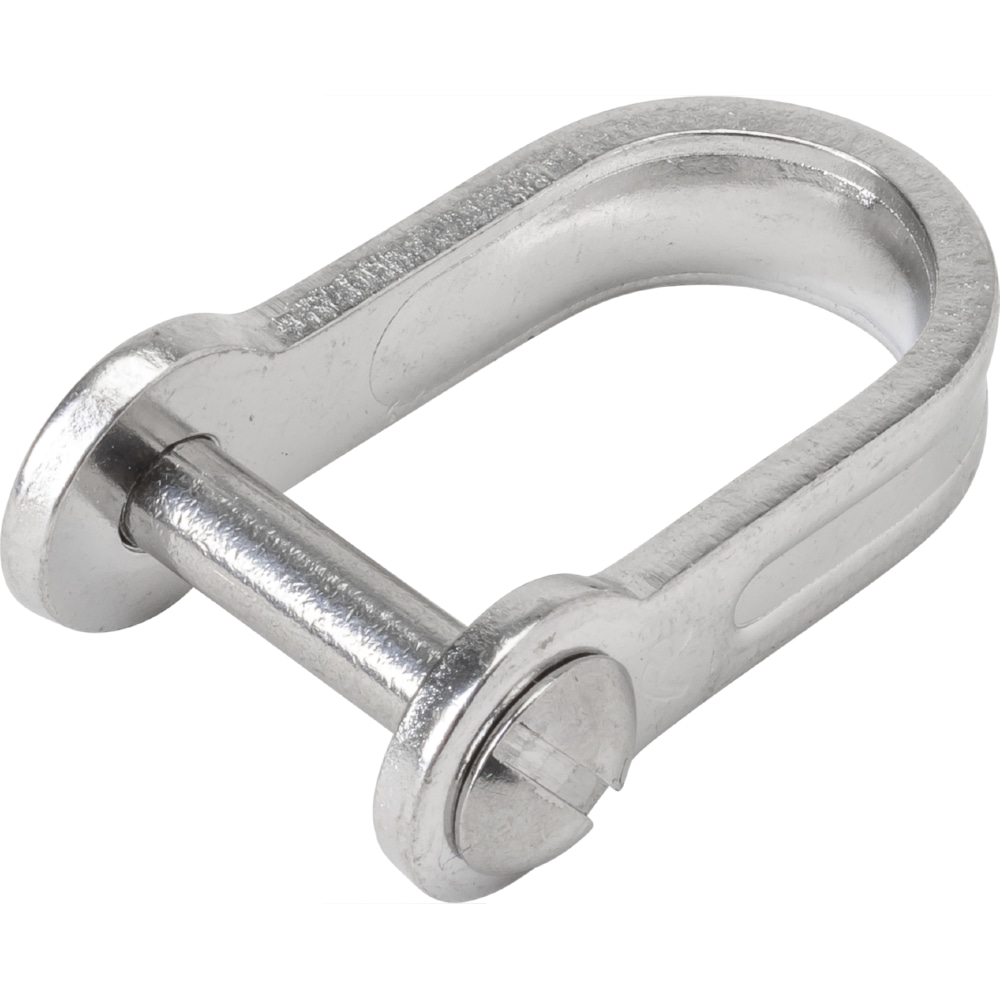

A6038 | D Strip Shackle with 5mm Slotted Screw Pin | 1000 | 24 | 15 | 5 | - | 14 | £3.22 |
|
A6039 | D Strip Shackle with 5mm Slotted Screw Pin | 1200 | 36 | 16 | 5 | - | - | £3.3 |
|
A6040 | D Strip Shackle with 5mm Slotted Screw Pin | 1200 | 25 | 12 | 5 | - | 10 | £2.82 |
 |

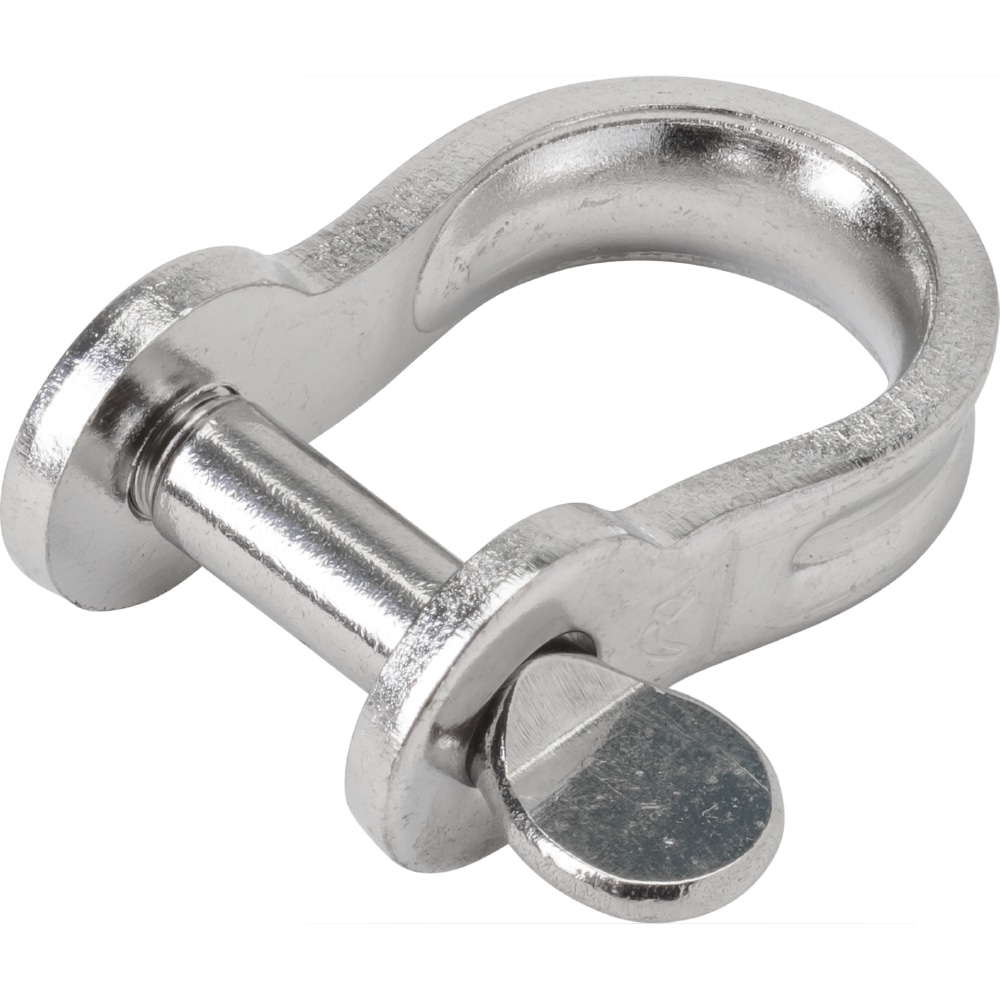

A6045 | Bow Strip Shackle with 6mm Screw Pin | 2000 | 23 | 15 | 6 | - | - | £4.24 |
|
A6046 | Bow Strip Shackle with 8mm Screw Pin | 3000 | 32 | 17 | 8 | - | 39 | £9.49 |
|
A6047 | Bow Strip Shackle with 10mm Screw Pin | 5000 | 40 | 21 | 10 | - | - | £18.94 |
 |

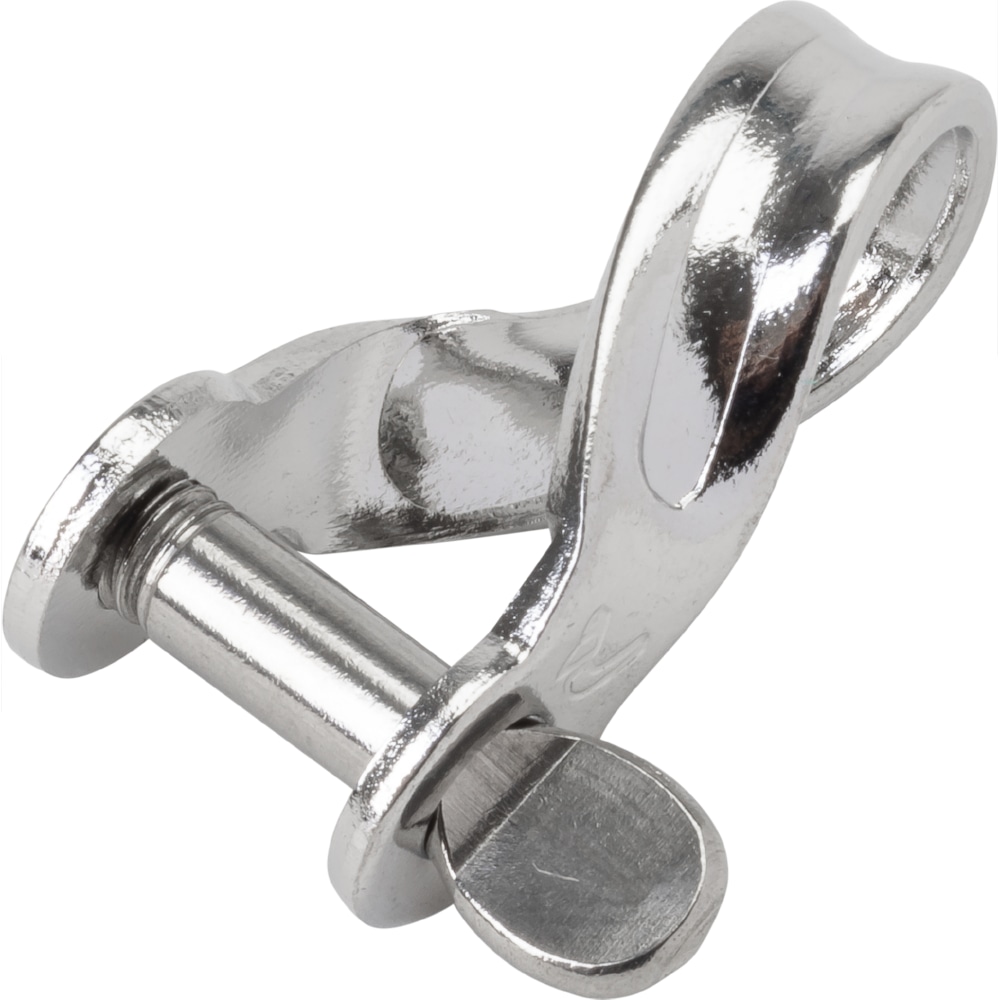

A6060 | Twisted Strip Shackle with 5mm Screw Pin | 1200 | 22 | 12 | 5 | - | 11 | £3.92 |
|
A6061 | Twisted Strip Shackle with 5mm Screw Pin | 1200 | 33 | 12 | 5 | - | 15 | £5.54 |
|
A6062 | Twisted Strip Shackle with 6mm Screw Pin | 2000 | 36 | 14 | 6 | - | 25 | £8.02 |
 |
A6065 | D Strip Shackle with 4mm Key Pin | 600 | 17 | 11 | 4 | - | 4 | £3.53 |
|

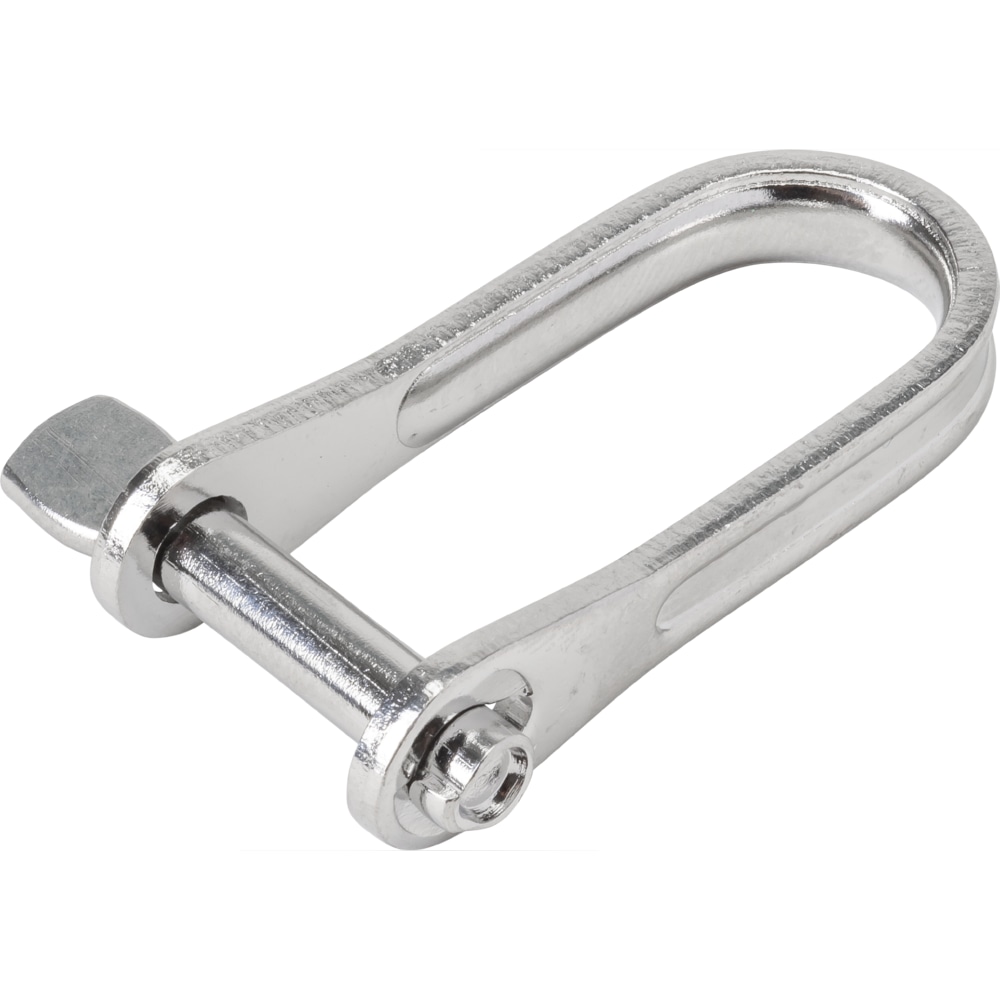

A6066 | D Strip Shackle with 5mm Key Pin | 1200 | 36 | 15 | 5 | - | 12 | £3.92 |
|
A6067 | D Strip Shackle with 5mm Key Pin | 1200 | 26 | 13 | 5 | - | 15 | £3.02 |
|
A6068 | D Strip Shackle with 6mm Key Pin | 2000 | 40 | 15 | 6 | - | 25 | £6.36 |
|
A6069 | D Strip Shackle with 6mm Key Pin | 2000 | 25 | 14 | 6 | - | - | £4.98 |
 |
A6075 | Strip Shackle with 5mm Key Pin & Halyard Retaining Pin | 700 | 12 | 23 | 5 | - | 14 | £8.46 |
|
A6076 | Strip Shackle with 5mm Key Pin & Halyard Retaining Pin | 700 | 15 | 33 | 5 | - | 17 | £10.37 |
|

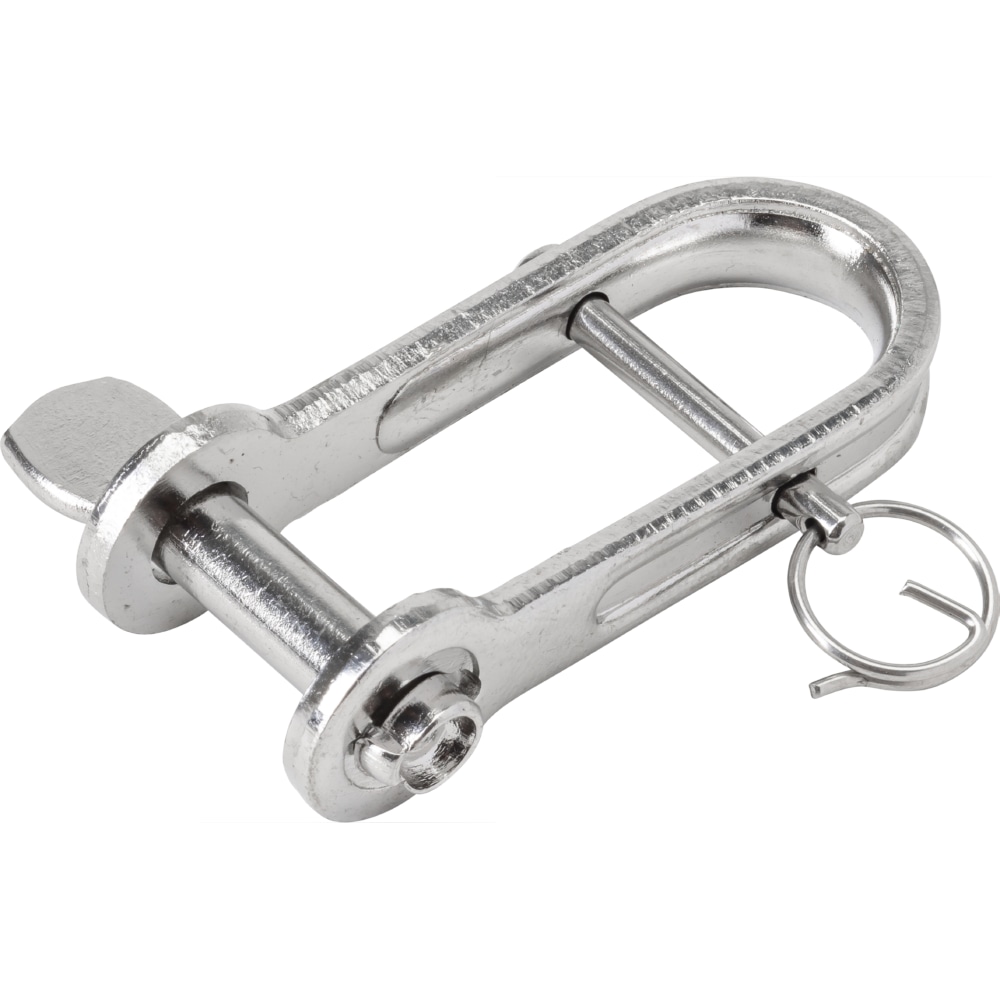

A6077 | Strip Shackle with 6mm Key Pin & Halyard Retaining Pin | 1500 | 14 | 23 | 6 | - | 27 | £11.64 |
|
A6078 | Strip Shackle with 8mm Key Pin & Halyard Retaining Pin | 2000 | 20 | 38 | 8 | - | 49 | £18.94 |
