Lacing Eyes & Eye Straps
Stainless steel lacing eyes are also known as an eye strap, these U or V-shaped fittings are used to provide a strong and secure attachment point for various fittings.
Lacing Eyes can serve as anchor points for blocks (pulleys), allowing for the redirection of lines to create more efficient or manageable pulling angles.
Made from marine grade stainless steel.
| SKU | Title | fixing hole centres mm | fixing hole diameter mm | height mm | Length mm | Weight g | Price | |
|---|---|---|---|---|---|---|---|---|
 |
A.262 | 4 Way Nylon Lacing Eye | - | 6 | 6 | - | 5 | £1.06 |
 |
A4035 | Pressed P Clip Lacing Eye - Medium | - | 5 | 15 | - | 5 | £2.71 |
|
A4035-6MM | Pressed P Clip Lacing Eye - Medium | - | 6.3 | 14 | - | 6 | £2.88 |
 |
A4036 | Pressed Offset Lacing Eye | 16 | 5.2 | 10.7 | - | 4 | £4.58 |
 |
A4038 | Pressed P Clip Lacing Eye - Small | - | 3.5 | 9.7 | - | 1.7 | £2.70 |
|
A4038-4 | Pressed P-Clip Lacing Eye - Small | - | 4 | 9 | - | 2 | £2.70 |
 |
A4073 | Pressed Stainless Steel Lacing Eye - Medium | 34 | 5 | 12 | - | 4 | £3.31 |
 |
A4088 | Pressed Stainless Steel Lacing Eye - Large | 41 | 5.2 | 18.6 | - | 5 | £3.00 |
|
A4088-6.5 | Pressed Stainless Steel Lacing Eye - Large | 41 | 6.5 | 18.6 | - | 5 | £8.72 |
| A4276 | Wide Pressed Stainless Steel Lacing Eye - Large | 44.9 | 5.2 | 22.6 | - | 7 | £6.98 | |
 |
A4288 | Pressed Stainless Steel Lacing Eye - Small | 22 | 3.5 | 8 | - | 1 | £2.35 |
 |
A4376 | Wide Pressed Stainless Steel Lacing Eye - Low | 40.2 | 5.2 | 13.6 | - | 3 | £3.10 |
 |
A4377 | Wide Pressed Stainless Steel Lacing Eye - Small | 28.8 | 5.2 | 12 | - | 7 | £2.95 |
 |
A4388 | Pressed Stainless Steel V Style Lacing Eye - Small | 27 | 5 | 11.6 | - | 1.5 | £3.42 |
|
A4488 | Pressed Stainless Steel V Style Lacing Eye - Med | 39.6 | 6.7 | 19.2 | - | 4 | £3.30 |
|
A4588 | Pressed Stainless Steel Lacing Eye - XLarge | 53.1 | 6.7 | 26 | - | 12 | £5.23 |
 |
A5014 | Forged Eye Strap - Small | 27 | 4.2 | 14 | - | 3.2 | £4.32 |

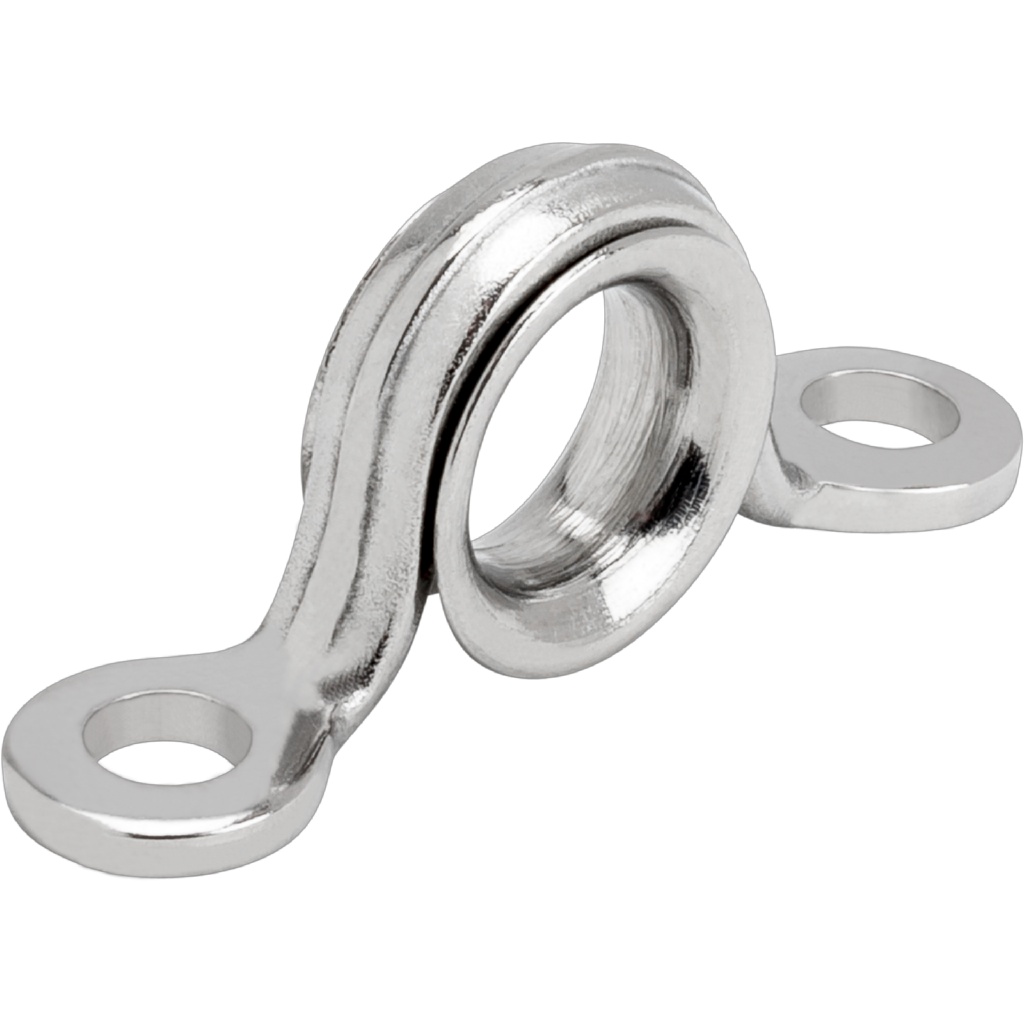

| A5014F | Forged Eye Strap With Ferrule - Small | 27 | 4.2 | 14 | - | 3.6 | £6.72 | |
 |
A5015 | Forged Eye Strap - Medium | 34 | 5 | 18 | - | 6.4 | £5.48 |
 |
A5015F | Forged Eye Strap With Ferrule - Medium | 34 | 5.2 | 10 | - | 8.2 | £8.36 |
| A5017 | Pressed Lacing Eye - Large | 35 | 5 | 20 | - | - | £1.14 | |
 |
A6050 | Stainless Steel Lacing Eye - Small | 28.2 | 4.2 | 12.9 | - | 2 | £0.84 |
 |
A6051 | Stainless Steel Lacing Eye - Medium | 34 | 5 | 14 | - | 5 | £0.73 |
 |
A6052 | Stainless Steel Lacing Eye - Large | 44.5 | 5.3 | 21.4 | - | 11 | £1.19 |
