Product Range
Strip Shackles
A range of 316 stainless steel strip shackles designed for strength and practicality.
| SKU | Title | a mm | breaking load kg | d mm | l mm | Weight g | Price | |
|---|---|---|---|---|---|---|---|---|
 |
A6020 | D Shackle With Standard Pin | 10 | 500 | 4 | 15 | 4 | £1.58 |
|
A6022 | D Shackle With Standard Pin | 12 | 1000 | 5 | 17 | 8 | £1.79 |
|
A6023 | D Shackle With Standard Pin | 15 | 1000 | 5 | 24 | 15 | £2.42 |
|
A6024 | D Shackle With Standard Pin | 16 | 1200 | 5 | 36 | 16 | £2.99 |
 |
A6027 | Shackle With Standard Pin | 16 | 1200 | 6 | 24 | 16 | £2.99 |
 |
A6028 | D Shackle With Standard Pin | 15 | 1200 | 6 | 40 | 25 | £4.80 |
 |
A6035 | D Shackle With Slotted Pin | 10 | 500 | 4 | 15 | 4 | £1.73 |
|
A6037 | D Shackle With Slotted Pin | 12 | 1000 | 5 | 17 | 8 | £1.93 |
 |

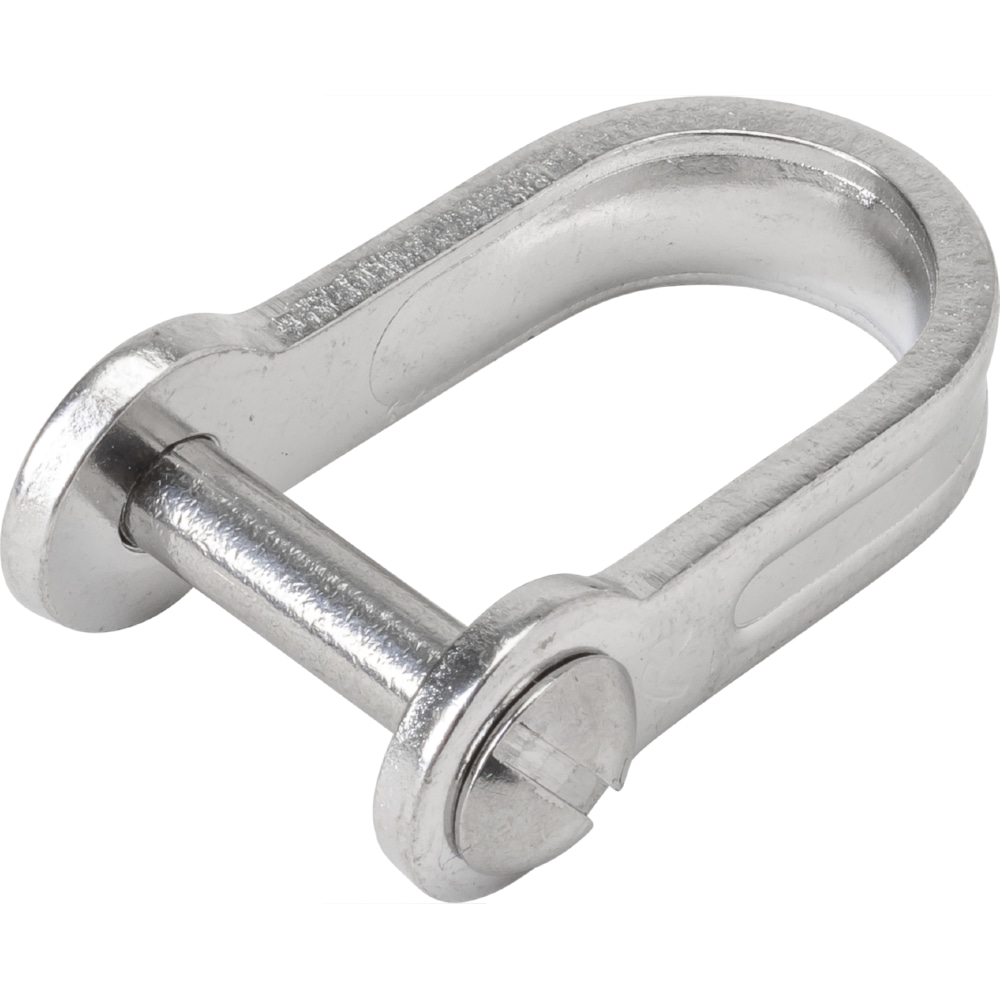

A6038 | D Shackle With Slotted Pin | 15 | 1000 | 5 | 24 | 14 | £2.92 |
|
A6039 | D Shackle With Slotted Pin | 16 | 1200 | 5 | 36 | - | £2.99 |
|
A6040 | D Shackle With Slotted Pin | 12 | 1200 | 5 | 25 | 10 | £2.56 |
 |

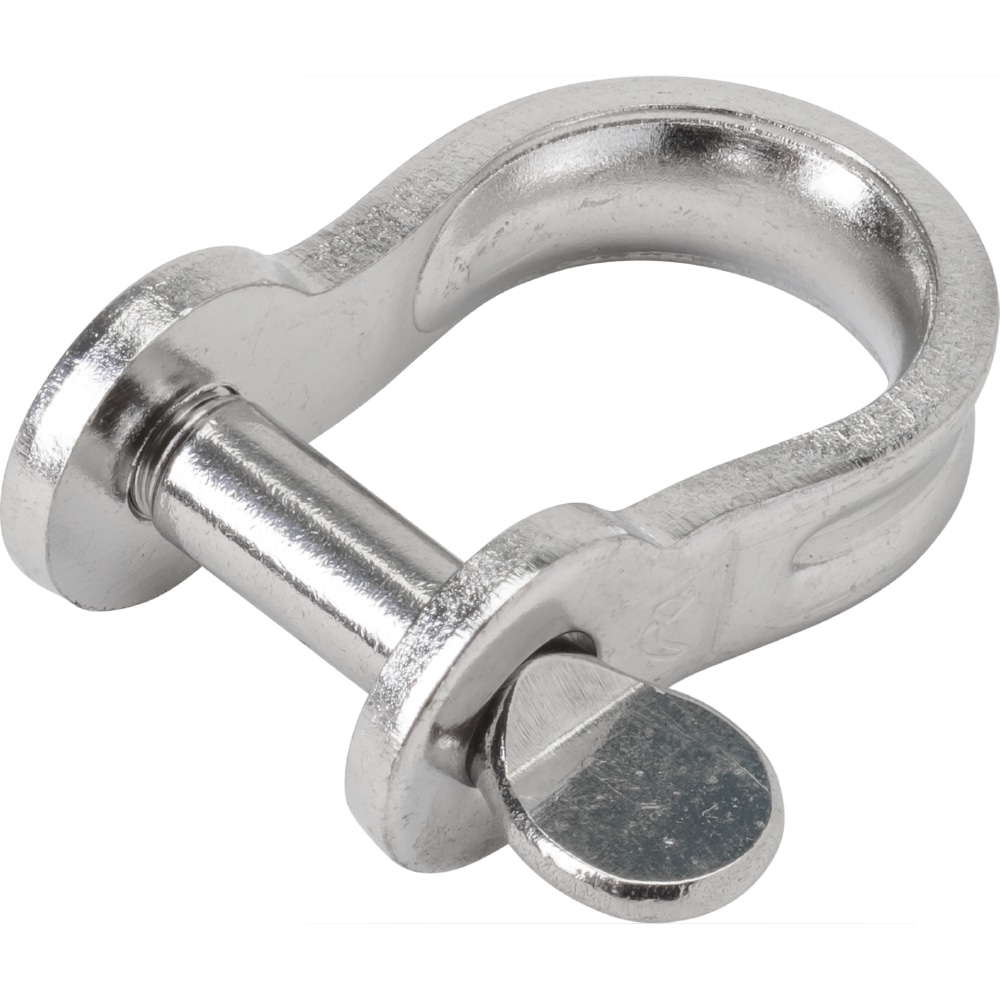

A6045 | Bow Shackle With Standard Pin | 15 | 2000 | 6 | 23 | - | £3.84 |
|
A6046 | Bow Shackle With Standard Pin | 17 | 3000 | 8 | 32 | 39 | £8.62 |
|
A6047 | Bow Shackle With Standard Pin | 21 | 5000 | 10 | 40 | - | £17.17 |
 |

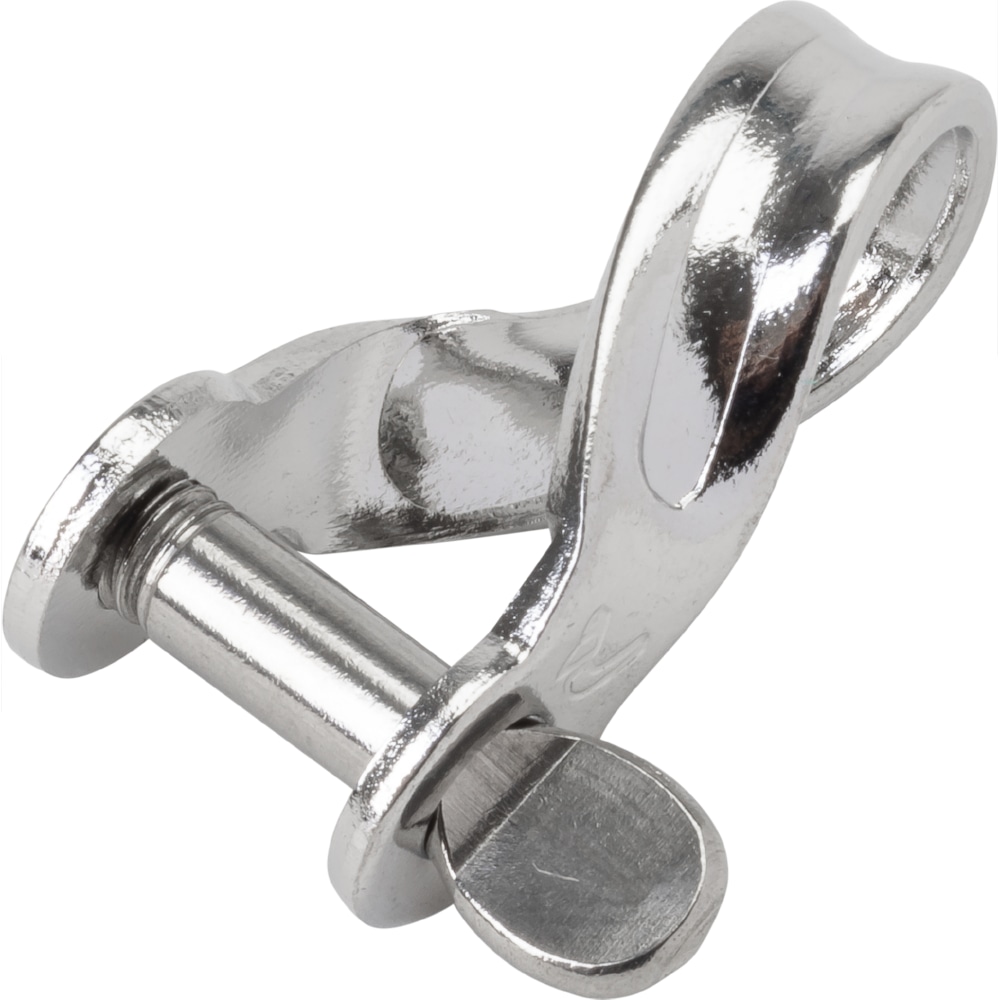

A6060 | Twisted Shackle With Standard Pin | 12 | 1200 | 5 | 22 | 11 | £3.56 |
|
A6061 | Twisted Shackle With Standard Pin | 12 | 1200 | 5 | 33 | 15 | £5.03 |
|
A6062 | Twisted Shackle With Standard Pin | 14 | 2000 | 6 | 36 | 25 | £7.27 |
 |
A6065 | Shackle With Key Pin | 11 | 600 | 4 | 17 | 4 | £3.19 |
|

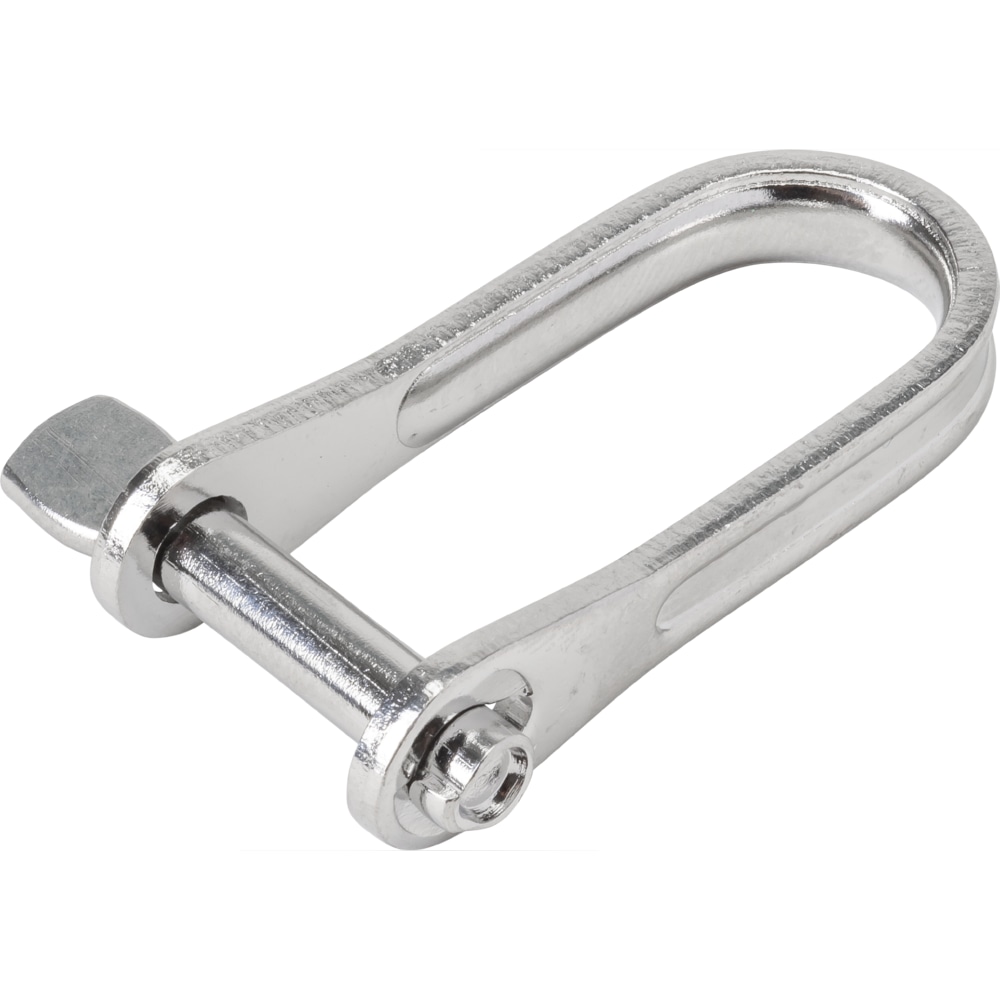

A6066 | Shackle With Key Pin | 15 | 1200 | 5 | 36 | 12 | £3.56 |
|
A6067 | Shackle With Key Pin | 13 | 1200 | 5 | 26 | 15 | £2.74 |
|
A6068 | Shackle With Key Pin | 15 | 2000 | 6 | 40 | 25 | £5.77 |
|
A6069 | Shackle With Key Pin | 14 | 2000 | 6 | 25 | - | £5.98 |
 |
A6075 | Shackle With Key Pin And Extra Pin & Ring | 23 | 700 | 5 | 12 | 14 | £7.68 |
|
A6076 | Shackle With Key Pin And Extra Pin & Ring | 33 | 700 | 5 | 15 | 17 | £9.41 |
|

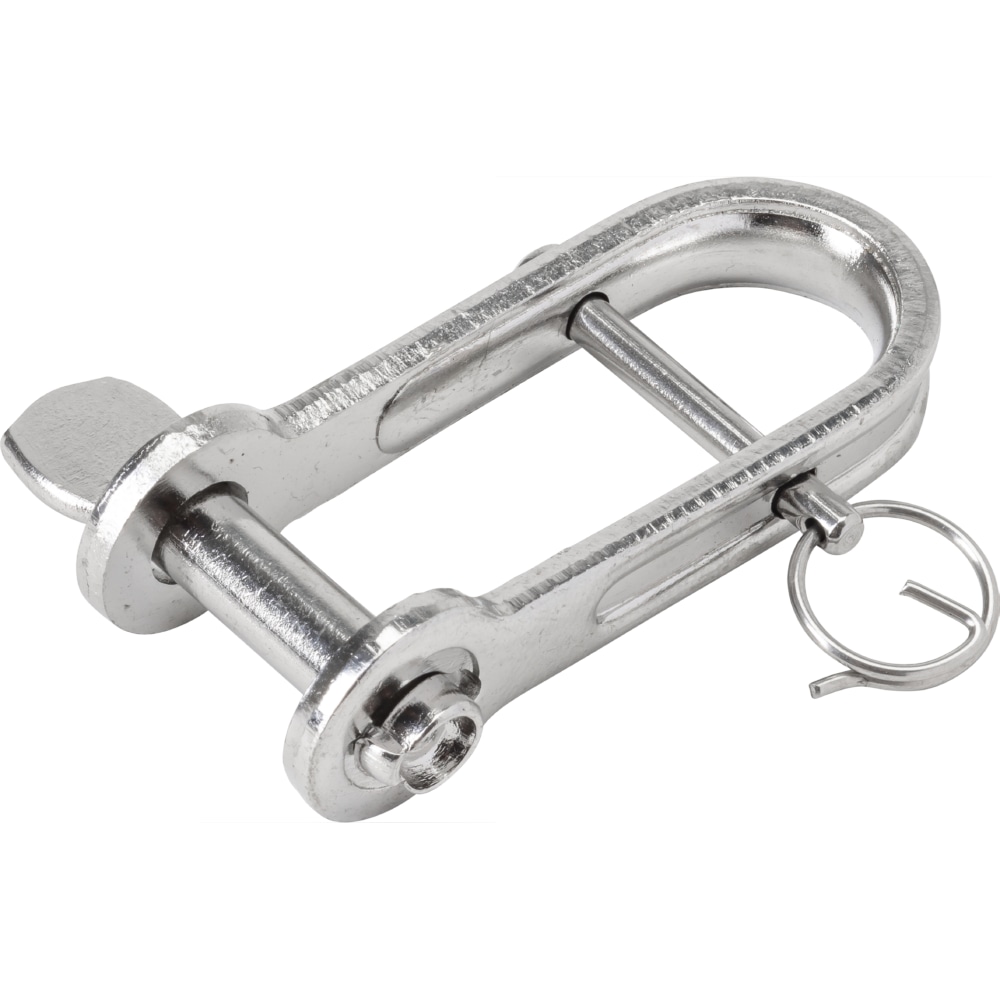

A6077 | Shackle With Key Pin And Extra Pin & Ring | 23 | 1500 | 6 | 14 | 27 | £10.56 |
|
A6078 | Shackle With Key Pin And Extra Pin & Ring | 38 | 2000 | 8 | 20 | 49 | £17.17 |
