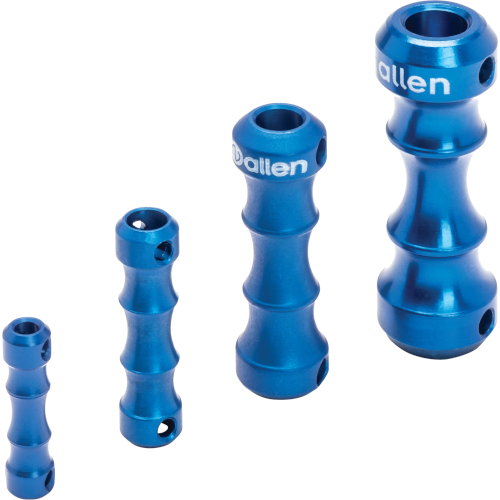

Dog Bones
Allen Dog Bones can be used in a variety of applications. Ideal for use as soft shackles or rope stops. CNC machined from aluminium our Dog Bones are extremely hard wearing. Add a bit of colour to your boat with the Allen Dog Bones. Available in 6 colours. Black, Blue, Gold, Silver, Purple and Orange.
| SKU | Title | maximum outside diameter mm | minimum outside diameter mm | Maximum Line Diameter mm | maximum working load kg | breaking load kg | lmaximum ine diameter mm | Length mm | Weight g | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 | A8606- | 6mm Dog Bone | 6 | 4 | 2 - 4 | 350 | 600 | 24 | 1 | £8.69 | |
 | A8608- | 8mm Dog Bone | 8 | 6 | 4 - 5 | 600 | 1100 | 32 | 3 | £11.02 | |
 | A8612- | 12mm Dog Bone | 12 | 7 | 5 - 6 | 1400 | 2500 | 40 | 7 | £13.13 | |
 | A8616- | 16mm Dog Bone | 16 | 8 | 6 - 8 | 2000 | 3500 | 48 | 14 | £15.88 | |
 | A8610- | 10mm Dog Bone | 10 | 6.5 | 6 | 900 | 1800 | 4.6 | £12.07 | ||
 | A9603- | 3mm Tii-Bone | 9 | 7 | 3 | 300 | 600 | 1.9 | £8.88 | ||
 | A9604- | 4mm Tii-Bone | 14 | 10.5 | 4 | 550 | 1100 | 5.2 | £11.29 | ||
 | A9605- | 5mm Tii-Bone | 16 | 12.5 | 5 | 750 | 1500 | 7.9 | £13.38 | ||
 | A9606- | 6mm Tii-Bone | 17 | 14 | 6 | 950 | 1900 | 10.6 | £16.93 | ||
 | A9608- | 8mm Tii-Bone | 20 | 16 | 1500 | 3000 | 8 | £22.50 |
