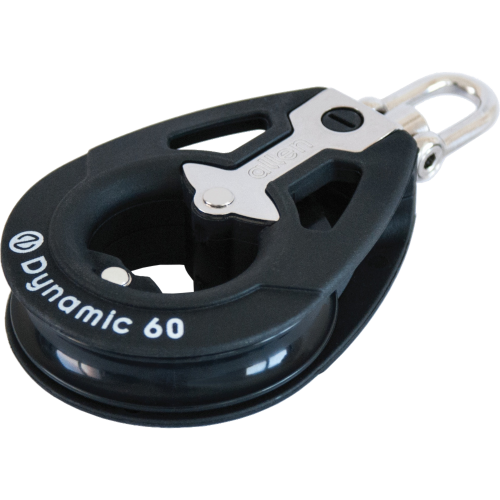

60mm Dynamic Blocks

Allen 60mm dynamic blocks offer low friction performance in a lightweight body. This range is ideal for fast-running control lines and sheets on keelboats, as well as more demanding applications such as backstay purchase systems. Also, a great choice for high-performance catamarans. Available with a wide range of accessories and features.Swivel Lock - Single variations feature a built in swivel lock switch, located at the head of the block. Muti sheave options feature a removable swivel lock moulding.  Dynamic Bearings - Twin rows of stainless steel ball bearings running on a stainless steel rail provide superior rolling speeds and durability. Great for fast running lines. Becket – The hole through the middle of the block can be used as a tying off point (becket).Maximum Working Load – If exceeded the block may not perform as designed. Breaking Load – The load at which a major block failure is likely to occur.

Filters:

Accessories

  • Becket
  • Cheek
  • Swivel
  • Tii-On

Block Configuration

  • Double
  • Quad
  • Quint
  • Single
  • Triple
  • Clear All
SKU Title Maximum Line Diameter mmshackle pin mmbreaking load kgmaximum working load kgfixing hole centres mm Length mm Weight g Price
A2060Single1051000500-118126£63.64
A2062Double1051250600-130255£131.71
A2064Triple1051250600-130353£178.98
A2066Quad1251250600-130443£232.14
A2063Double With Becket1051250600-148271£137.93
A2065Triple With Becket1051250600-148397£185.23
A2067Quad With Becket1051250600-148456£238.38
A2069Quint1051250600-130549£267.58
A2060CSingle Cheek Block105100050060115149£71.15
A2069BQuint With Becket1061250600-150£273.70
A2060TII-Single Tii-On10-1400700-8491£63.64
A2166Cheek Adaptor For 60mm Block----60£7.50
