Product Range

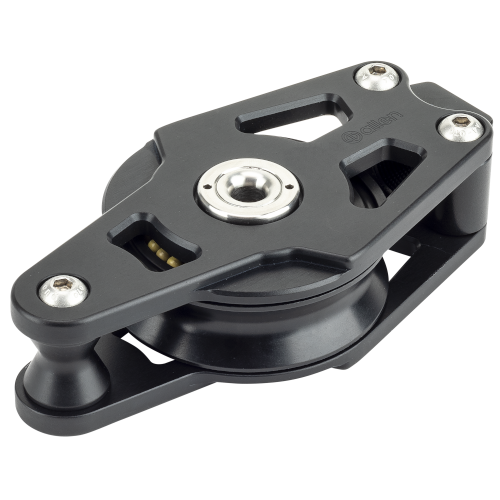

Ram Blocks 85mm
These blocks are specially designed to be used on the end of a hydraulic ram.Featuring an aluminum body and sheave. These blocks are plain bearing, with ball bearings to reduce sideways movement. Developed to suit a 3/4 - 16 UNF thread attachment to the ram. These blocks can be customised to suit different attachment methods. Please contact us for more details.
| SKU | Title | line diameter mm | maximum working load kg | breaking load kg | thread size | Length mm | Weight g | Price | |
|---|---|---|---|---|---|---|---|---|---|
 | AB1749 | Ram Becket Block | 10 - 24 | 4000 | 8000 | 3/4-16 UNF | 826 | £1,782.96 | |
 | AB1748 | Ram Block | 10 - 24 | 4000 | 8000 | 3/4-16 UNF | 730 | £1,615.30 | |
 | AB1800 | 85mm Ram Becket Block | 12 - 24 | 4000 | 8000 | 5/8-18 UNF | £1,782.96 |
