Product Range

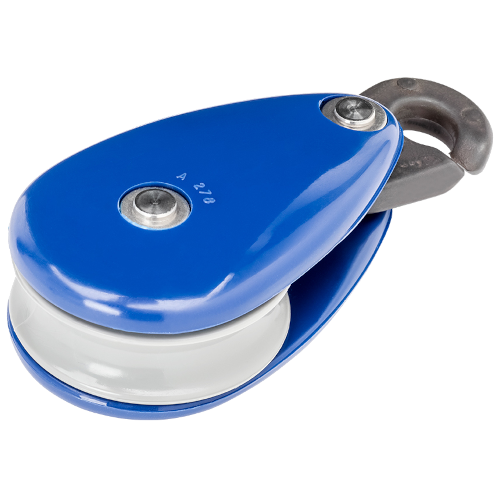

Classic Dinghy Blocks
The classic dinghy block range features a selection of blocks that were originally designed for use in the different systems on a Laser dinghy. The mainsheet blocks are manufactured from nylon and are available with either a plain bearing system or a ball bearing system.
| SKU | Title | Shackle Pin mm | Sheave Diameter mm | Maximum Line Diameter mm | Breaking Load Kg | Maximum Working Load Kg | Length mm | Weight g | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
 | A.178 | Single Plain Bearing | - | 25 | 8 | 250 | 140 | 48 | 13 | £6.24 |
 | A.178-74- | Single Plain Bearing With Inglefield Clip | - | 25 | 8 | 250 | 140 | 69 | 23 | £9.97 |
 | A.278- | Single Plain Bearing | - | 38 | 10 | 300 | 155 | 67 | 36 | £11.60 |
 | A.278-74- | Single Plain Bearing With Inglefield Clip | - | 38 | 10 | 300 | 155 | 86 | 45 | £14.52 |
 | A.378- | Single Plain Bearing With Becket | - | 38 | 10 | 300 | 155 | 86 | 38 | £14.62 |
 | A.178BB | Single Ball Bearing | - | 28 | 8 | 250 | 150 | 48 | 24 | £12.18 |
 | A.178-74BB | Single Ball Bearing With Inglefield Clip | - | 28 | 8 | 250 | 140 | 69 | 32 | £15.67 |
 | A.278BB | Single Ball Bearing | - | 38 | 10 | 300 | 155 | 67 | 50 | £18.95 |
 | A.278-74BB | Single Ball Bearing With Inglefield Clip | - | 38 | 10 | 300 | 155 | 86 | 56 | £21.90 |
 | A.378BB | Single Ball Bearing With Becket | - | 38 | 10 | 300 | 155 | 86 | 55 | £21.96 |
 | A.179BBO | Linked Singles Nylon Ball Bearing Blocks | - | 29 | 8 | 250 | 150 | 95 | 30 | £26.72 |
 | A4265 | V Cleat With Single Sheave & Becket | 5 | 26 | 2 - 4 | 450 | 250 | 61 | 33 | £21.28 |
 | A..93 | Plain Bearing Single Sheave With Becket | 5 | 26 | 6 | 620 | 310 | 79 | 39 | £10.72 |
 | A..93LZ | Plain Bearing Single Sheave With Becket & Key | 5 | 26 | 6 | 620 | 310 | 86 | 40 | £19.01 |
 | A..93C | Plain Bearing Single Sheave, Becket & Curved Key | 5 | 26 | 6 | 620 | 310 | 86 | 40 | £22.75 |
