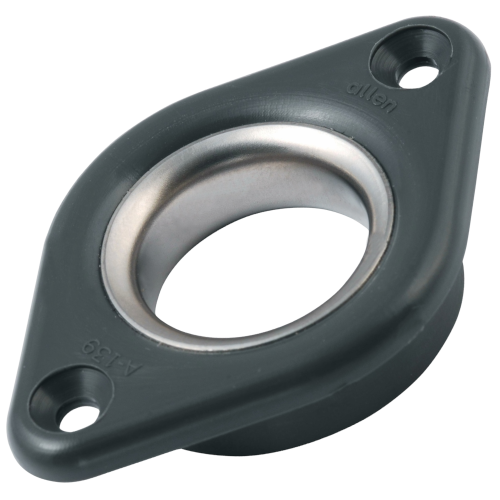

Deck Bushes - Plastic
In most applications, a through deck bush is used to guide rope or wire through a surface, such as the deck of a boat. The deck bush offers protection to the surface it is fitted to, stopping the rope or wire from rubbing and cutting through the surface. Deck bushes feature radiused corners to minimise wear on the rope/ wire passing through. Plastic deck bushes are a lightweight and budget friendly option which will suit most applications. Available with a Stainless-Steel insert to offer a longer lasting protection.
| SKU | Title | Inside Diameter mm | Outside Diameter mm | Fixing Hole Diameter mm | Fixing Hole Depth mm | Fixing Hole Centres mm | Length mm | Weight g | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
 | A..39 | Through Deck Bush With Flange | 9.3 | 19 | 3.9 | 9.4 | 29.3 | 40 | 3 | £1.26 |
 | A.139 | Through Deck Bush With Flange | 22.6 | 33 | 3.95 | 9 | 44.5 | 200 | 7 | £2.06 |
 | A.239 | Through Deck Bush With Flange | 13 | 21.5 | 4.5 | 9 | 32.5 | 200 | 4 | £1.75 |
 | A.339 | Through Deck Bush With Flange | 15.5 | 24.5 | 4.5 | 9 | 35.4 | 200 | 5 | £1.49 |
 | A.439 | 8mm Through Deck Bush | 8 | 13 | - | 8 | - | 14 | 0.5 | £1.03 |
 | A.539 | Through Deck Bush | 13 | 16 | - | 8 | - | 200 | 2 | £1.61 |
 | A4039 | Through Deck Bush With Flange And SS Inner | 6.6 | 19 | 3.9 | 9 | 29.3 | 200 | 5 | £5.93 |
 | A4139 | Through Deck Bush With Flange And SS Inner | 20.5 | 33 | 3.95 | 9 | 44.5 | 200 | 12 | £8.65 |
 | A4239 | Through Deck Bush With Flange And SS Inner | 11.4 | 21.5 | 4.5 | 9 | 32.5 | 200 | 9 | £7.16 |
 | A4339 | Through Deck Bush With Flange And SS Inner | 13.8 | 24.5 | 4.5 | 9 | 35.4 | 200 | 12 | £7.16 |
 | A4439 | Through Deck Bush With Stainless Steel Inner | 6 | 13 | - | 8 | - | 200 | 3 | £5.50 |
 | A4539 | Through Deck Bush With Stainless Steel Inner | 11.4 | 16 | - | 8 | - | 200 | 4 | £7.02 |
 | A.439-14 | Through Deck Bush | 8.1 | 12.85 | - | 14.17 | - | 14 | 2 | £1.22 |
 | A.539-14 | Through Deck Bush | 13 | 16 | - | 14 | - | 200 | 2 | £1.91 |
 | A4439-14 | Through Deck Bush With Stainless Steel Inner | 7.1 | 12.85 | - | 14.17 | - | 200 | 3.5 | £5.93 |
 | A4539-14 | Through Deck Bush With Stainless Steel Inner | 11.4 | 16 | - | 14 | - | 200 | 5.7 | £7.64 |
