U Bolts

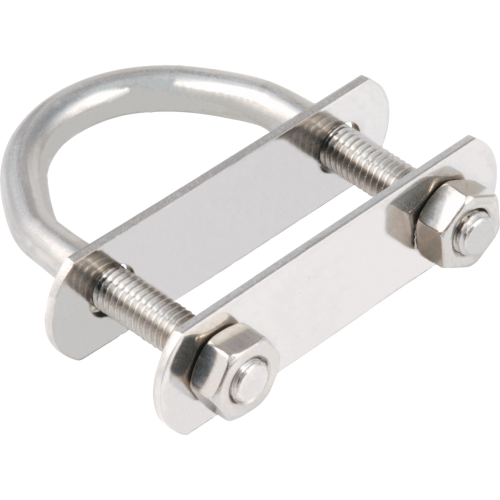

Allen U Bolt's are designed to withstand high loads without distortion.316 Stainless Steel.Supplied with top plate, backing plate and nuts.
| SKU | Title | rod size mm | fixing hole centres mm | height mm | thread length mm | inside width mm | Length mm | Weight g | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
 | A4371 | U Bolt With Top & Bottom Backing Plate | 5 | 28 | 43 | 20 | 23 | 200 | 24 | £16.75 |
 | A4471 | U Bolt With Top & Bottom Backing Plate | 6 | 38 | 58 | 25 | 32 | 200 | 54 | £19.27 |
 | A4571 | U Bolt With Top & Bottom Backing Plate | 8 | 51 | 75 | 25 | 43 | 200 | 115 | £25.06 |
 | A4671 | U Bolt With Top Backing Plate | 6 | 38 | 77.5 | 39 | 32 | 200 | 53 | £24.84 |
 | A4871 | U Bolt With Heavy Duty Top & Bottom Backing Plate | 6 | 28 | 43 | 20 | 22 | 200 | 62 | £25.00 |
 | A4512 | U Bolt With Lowers & Bottom Backing Plate | 6 | 28 | 80 | 25 | 22 | 200 | 100 | £77.18 |
 | A4371L | Long U Bolt With Top & Bottom Backing Plate | 5 | 28 | 51 | 20 | 23 | 200 | 29 | £17.32 |
 | A4871X | U Bolt With Heavy Duty Top & Bottom Backing Plate | 6 | 28 | 50 | 25 | 22 | 200 | 60 | £26.72 |
 | A4671XT | Long U Bolt With Nut & Washer | 6 | 38 | 120 | 96 | 32 | 200 | 57 | £50.78 |
 | A4671XT-FT | Long U Bolt With Tang, Nut & Washer | 6 | 38 | 120 | 96 | 32 | 200 | 91 | £86.77 |
