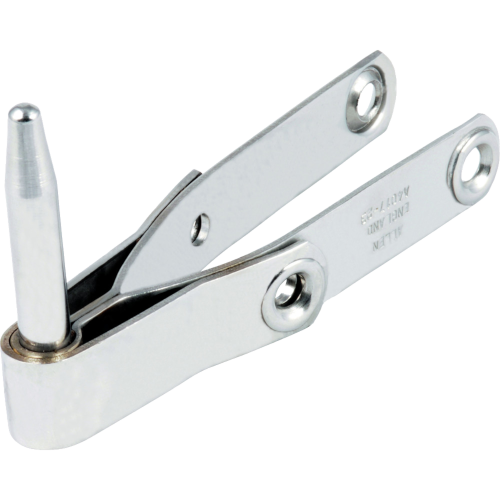

Rudder Pintles & Gudgeons

Our range of Rudder Gudgeons and Pintles are available in varying sizes. Designed for fixing to the rudder blade or rudder stock.

SKU	Title	Fixing Hole Diameter mm	Width mm	Hole / Pin Diameter mm	Pin Length mm	Distance From Stock To Pin mm	Length mm	Weight g	Price
A4017-23	Rudder Pintle	5.2	23	8	40	18	89	88	£26.27
A4017-35	Rudder Pintle	5.5	35	8	40	18	89	101	£26.27
A4017-42	Rudder Pintle	5.5	42	8	40	18	89	101	£30.16
A4017-45	Rudder Pintle	5.5	45	8	40	18	89	101	£30.16
A4017-51	Rudder Pintle	5.5	51	8	40	18	89	101	£34.37
A4017-54	Rudder Pintle	5.5	54	8	40	18	89	101	£31.28
A4017C-38	Rudder Pintle	5.5	38	8	40	18	89	101	£26.27
A4018-23	Rudder Gudgeon	5.5	23	8	-	18	135	87	£26.27
A4018-35	Rudder Gudgeon	5.2	35	8	-	18	145	105	£26.27
A4018-42	Rudder Gudgeon	5.2	42	8	-	18	145	105	£26.27
A4018-45	Rudder Gudgeon	5.2	45	8	-	18	140	105	£26.27
A4018-51	Rudder Gudgeon	5.2	51	8	-	18	140	105	£26.27
A4018-54	Rudder Gudgeon	5.2	54	8	-	18	140	105	£26.27
A4018C-38	Rudder Gudgeon	5.2	38	8	-	18	92	83	£26.27
A4106	Rudder Gudgeon	4.8	38	8	-	18	120	126	£29.83
A4117L	Rudder Pintle	5.2	11	7.8	47	10	70	57	£16.33
A4117S	Rudder Pintle	4	11	7.8	35	18	70	57	£16.33
A4318	Rudder Gudgeon	4.8	43	8	-	18	123	123	£29.75
A4417L	Optimist Rudder Pintle	5.2	12	6	34	10	97	48	£16.76
A4417S	Optimist Rudder Pintle	5.2	12	6	19	10	78	40	£16.76
