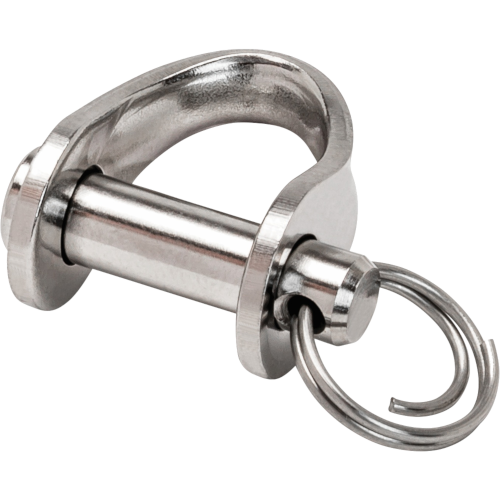

Pressed Shackles
Our range of pressed stainless steel shackles is a practical and cost-effective solution for a wide variety of marine, industrial, and general rigging applications. Made from durable 316 stainless steel, these shackles offer good corrosion resistance and reliable strength in a lightweight, compact design. Available in multiple sizes to suit different loads and requirements.
Filters:
Pin Type
- Clevis
- Key
- Screw
Pin Diameter mm
- 3
- 5
- 6
- Clear All
| SKU | Title | Opening mm | Pin Diameter mm | breaking load kg | maximum working load kg | Inside Width mm | Length mm | Weight g | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
 | A1438 | Pressed Bow Shackle with 6mm Clevis Pin | 16 | 6 | 1000 | 500 | 18 | 200 | 19 | £8.82 |
 | A4138 | Pressed Rigging Link with 5mm Clevis Pin | 18 | 5 | 800 | 300 | 18 | 200 | 14 | £6.50 |
 | A4128 | Pressed Rigging Link with 5mm Clevis Pin | 8 | 5 | 700 | 300 | 8 | 200 | 7 | £4.56 |
 | A4028 | Pressed Narrow Rigging Link with 5mm Clevis Pin | 9 | 5 | 900 | 300 | 9 | 200 | 7 | £6.59 |
 | A4328 | Pressed Rigging Link with 5mm Clevis Pin | 13 | 5 | 1000 | 300 | 14 | 200 | 9 | £4.31 |
 | A4528 | Pressed Shackle with 5mm Clevis Pin | 13 | 5 | 900 | 300 | 13 | 200 | 7 | £5.20 |
 | A4728 | Pressed Shackle with 3mm Clevis Pin | 9 | 3 | 250 | 200 | 9 | 200 | 3 | £4.48 |
 | A4228 | Pressed Bow Rigging Link with 5mm Clevis Pin | 9 | 5 | 1300 | 600 | 13 | 200 | 20 | £9.17 |
 | A4048 | Pressed Bow Shackle with 5mm Screw Pin | 13 | 5 | 800 | 300 | 14 | 200 | 10 | £5.54 |
 | A4148 | Pressed Narrow Shackle with 5mm Screw Pin | 9 | 5 | 1000 | 500 | 9 | 200 | 7 | £7.40 |
 | A4348 | Pressed Rigging Link with 5mm Screw Pin | 13 | 5 | 1000 | 300 | 13 | 200 | 4 | £7.40 |
 | A4828 | Bayonet Halyard Shackle | 13 | 5 | 550 | 200 | 13 | 200 | 17 | £21.56 |
 | A4428 | Pressed D Shackle with 5mm Clevis Pin | 16 | 5 | 1000 | 300 | 16 | 200 | 7 | £8.17 |
 | A4929 | Pressed Shackle with 5mm Clevis Pin | 11 | 5 | 300 | 250 | 11 | 200 | 6 | £5.74 |
