Product Range

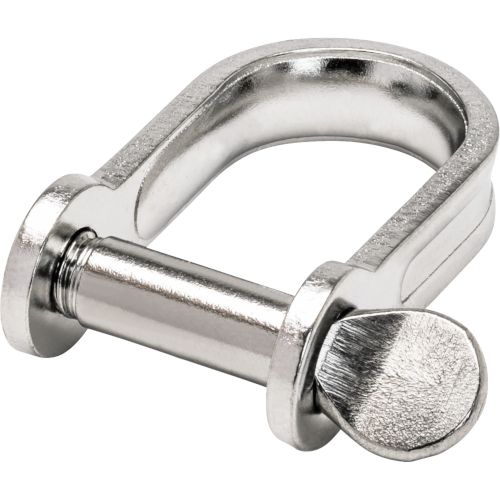

Strip Shackles
Our range of marine grade 316 stainless steel strip shackles offers reliable strength, excellent corrosion resistance, and a compact design ideal for a variety of marine rigging applications. Available in multiple sizes and shapes, they’re perfect for everything from small craft to heavy-duty setups, providing secure, low-profile connections that are easy to install and built to last.
Filters:
Pin Diameter mm
- 4
- 5
- 6
- 8
- 10
Pin Type
- Key
- Slotted
- Standard
Body Type
- Bow
- D
- Retaining
- Twisted
- Clear All
| SKU | Title | Internal Length mm | Opening mm | Pin Diameter mm | Breaking Load Kg | Length mm | Weight g | Price | |
|---|---|---|---|---|---|---|---|---|---|
 | A6020 | D Strip Shackle with 4mm Screw Pin | 15 | 10 | 4 | 500 | 200 | 4 | £1.74 |
 | A6022 | D Strip Shackle with 5mm Screw Pin | 17 | 12 | 5 | 1000 | 200 | 8 | £1.97 |
 | A6023 | D Strip Shackle with 5mm Screw Pin | 24 | 15 | 5 | 1000 | 200 | 15 | £2.68 |
 | A6024 | D Strip Shackle with 5mm Screw Pin | 36 | 16 | 5 | 1200 | 200 | 16 | £3.30 |
 | A6035 | D Strip Shackle with 4mm Slotted Screw Pin | 15 | 10 | 4 | 500 | 200 | 4 | £1.91 |
 | A6037 | D Strip Shackle with 5mm Slotted Screw Pin | 17 | 12 | 5 | 1000 | 200 | 8 | £2.14 |
 | A6038 | D Strip Shackle with 5mm Slotted Screw Pin | 24 | 15 | 5 | 1000 | 200 | 14 | £3.22 |
 | A6039 | D Strip Shackle with 5mm Slotted Screw Pin | 36 | 16 | 5 | 1200 | 200 | 0 | £3.30 |
 | A6040 | D Strip Shackle with 5mm Slotted Screw Pin | 25 | 12 | 5 | 1200 | 200 | 10 | £2.82 |
 | A6065 | D Strip Shackle with 4mm Key Pin | 17 | 11 | 4 | 600 | 200 | 4 | £3.53 |
 | A6066 | D Strip Shackle with 5mm Key Pin | 36 | 15 | 5 | 1200 | 200 | 12 | £3.92 |
 | A6067 | D Strip Shackle with 5mm Key Pin | 26 | 13 | 5 | 1200 | 200 | 15 | £3.02 |
 | A6068 | D Strip Shackle with 6mm Key Pin | 40 | 15 | 6 | 2000 | 200 | 25 | £6.36 |
 | A6069 | D Strip Shackle with 6mm Key Pin | 25 | 14 | 6 | 2000 | 200 | 0 | £4.98 |
 | A6075 | Strip Shackle with 5mm Key Pin & Halyard Retaining Pin | 12 | 23 | 5 | 700 | 200 | 14 | £8.46 |
 | A6076 | Strip Shackle with 5mm Key Pin & Halyard Retaining Pin | 15 | 33 | 5 | 700 | 200 | 17 | £10.37 |
 | A6077 | Strip Shackle with 6mm Key Pin & Halyard Retaining Pin | 14 | 23 | 6 | 1500 | 200 | 27 | £11.64 |
 | A6078 | Strip Shackle with 8mm Key Pin & Halyard Retaining Pin | 20 | 38 | 8 | 2000 | 200 | 49 | £18.94 |
 | A6045 | Bow Strip Shackle with 6mm Screw Pin | 23 | 15 | 6 | 2000 | 200 | 0 | £4.24 |
 | A6046 | Bow Strip Shackle with 8mm Screw Pin | 32 | 17 | 8 | 3000 | 200 | 39 | £9.49 |
 | A6047 | Bow Strip Shackle with 10mm Screw Pin | 40 | 21 | 10 | 5000 | 200 | 0 | £18.94 |
 | A6060 | Twisted Strip Shackle with 5mm Screw Pin | 22 | 12 | 5 | 1200 | 200 | 11 | £3.92 |
 | A6061 | Twisted Strip Shackle with 5mm Screw Pin | 33 | 12 | 5 | 1200 | 200 | 15 | £5.54 |
 | A6062 | Twisted Strip Shackle with 6mm Screw Pin | 36 | 14 | 6 | 2000 | 200 | 25 | £8.02 |
 | A6027 | D Strip Shackle with 6mm Screw Pin | 24 | 16 | 6 | 1200 | 200 | 16 | £3.30 |
 | A6028 | D Strip Shackle with 6mm Screw Pin | 40 | 15 | 6 | 1200 | 200 | 25 | £5.29 |
