Product Range
Rigging Screws

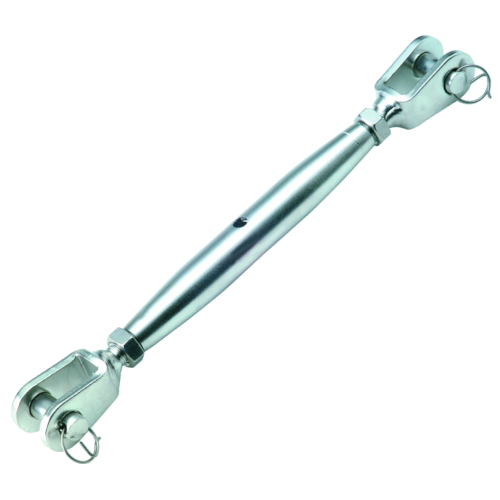

316 Stainless steel rigging screws
| SKU | Title | Thread | Max Length mm | Min Length mm | Body Length mm | Fork Width mm | Pin Diameter mm | Breaking Load Kg | Length mm | Weight g | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 | A6110 | Fork / Fork Rigging Screw | M5 | 180 | 126 | 80 | 8 | 5 | 800 | 200 | 51 | £26.09 |
 | A6112 | Fork / Fork Rigging Screw | M6 | 200 | 138 | 92 | 8 | 5 | 1250 | 200 | 90 | £30.58 |
 | A6114 | Fork / Fork Rigging Screw | M8 | 234 | 158 | 112 | 10 | 6 | 1300 | 200 | 140 | £44.75 |
 | A6116 | Fork / Fork Rigging Screw | M10 | 272 | 188 | 120 | 11 | 8 | 2600 | 200 | 240 | £58.96 |
 | A6132 | Fork / Stud Rigging Screw For 2.5mm Wire | M5 | 206 | 152 | 80 | 8 | 5 | 800 | 200 | 45 | £29.39 |
 | A6134 | Fork / Stud Rigging Screw For 3mm Wire | M6 | 232 | 170 | 92 | 8 | 6 | 1250 | 200 | 85 | £31.03 |
 | A6136 | Fork / Stud Rigging Screw For 4mm Wire | M6 | 242 | 180 | 92 | 8 | 5 | 1250 | 200 | 87 | £30.58 |
 | A6138 | Fork / Stud Rigging Screw For 4mm Wire | M8 | 275 | 199 | 112 | 19 | 6 | 1300 | 200 | 130 | £43.80 |
 | A6140 | Fork / Stud Rigging Screw For 5mm Wire | M8 | 281 | 205 | 112 | 10 | 6 | 1300 | 200 | 132 | £42.55 |
