Cam Cleats

Aluminium Ball Bearing Cam Cleats have had over 60 years of meticulous R&D to perfect their design, the jaw profile is optimised for rope entry and exit which results in smooth cleating and un-cleating without chewing rope whilst doing so. The addition of ball bearings and double coil springs gives a super smooth cam action, allowing for a consistent feel every time the rope is cleated. The aluminium cam cleat is designed to be more durable and is capable of withstanding higher loads thanks to the strength of the die-cast aluminium jaws at the expense of being slightly heavier than the Allenite version. This makes the aluminium version perfect for applications which may have a fast running control line, such as a spinnaker halyard, mainsheet or jib sheet. Allenite Plain Bearing Cam Cleats feature the same jaw profile as the aluminium version but are moulded from a proprietary material developed by Allen specifically for low weight and good heat dissipation to increase wear resistance over standard acetals. The removal of ball bearings offers a further weight reduction and softer coil springs allow the rope to drop into the jaws with less load. The Allenite version offers a good weight saving over the aluminium version.

Title fixing hole centres mmfixing hole diameter mmheight mmline size mmmaximum working load kgweight g Price ex. VAT
A..76 Ball Bearing Cam Cleat - Medium 385294 - 1015063 £33.32

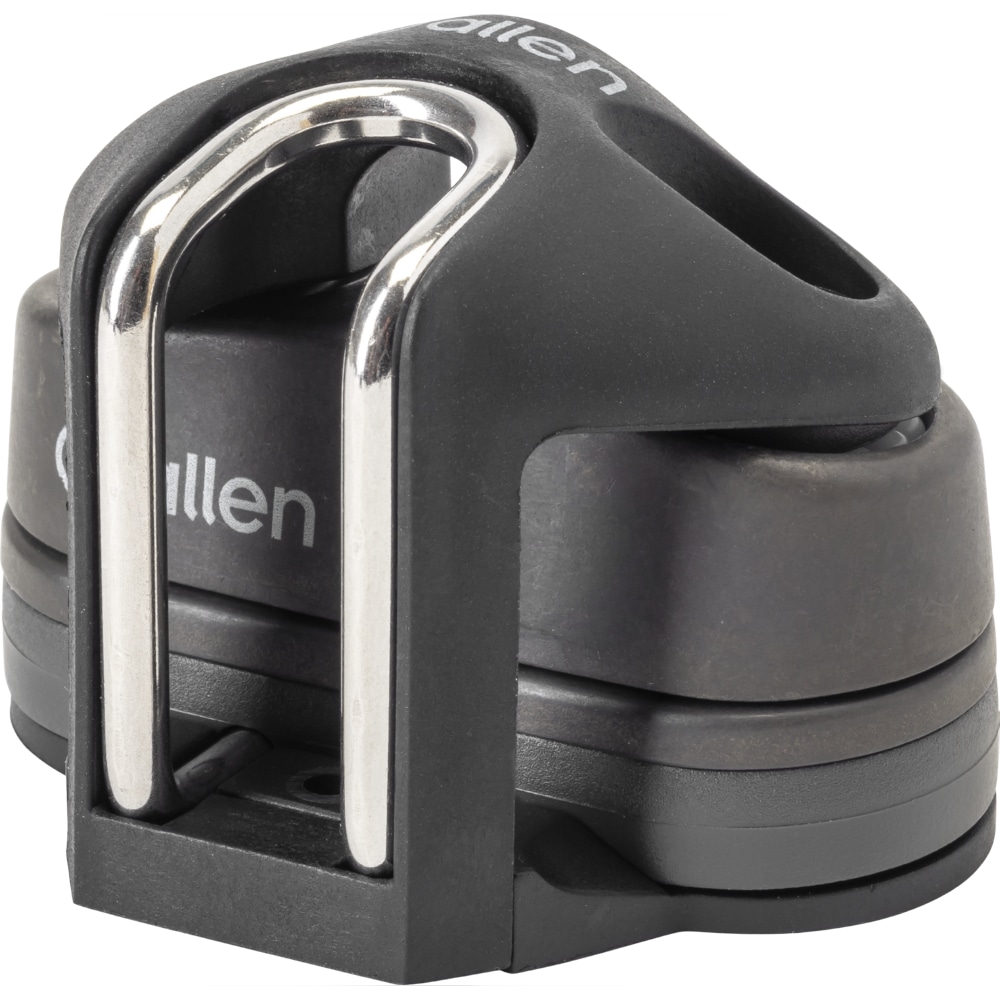

A..76-496 Ball Bearing Cam Cleat With Mega Pro Lead - Medium 385484 - 10150103 £42.30
A..77 Ball Bearing Cam Cleat - Small 284222 - 610029 £27.95

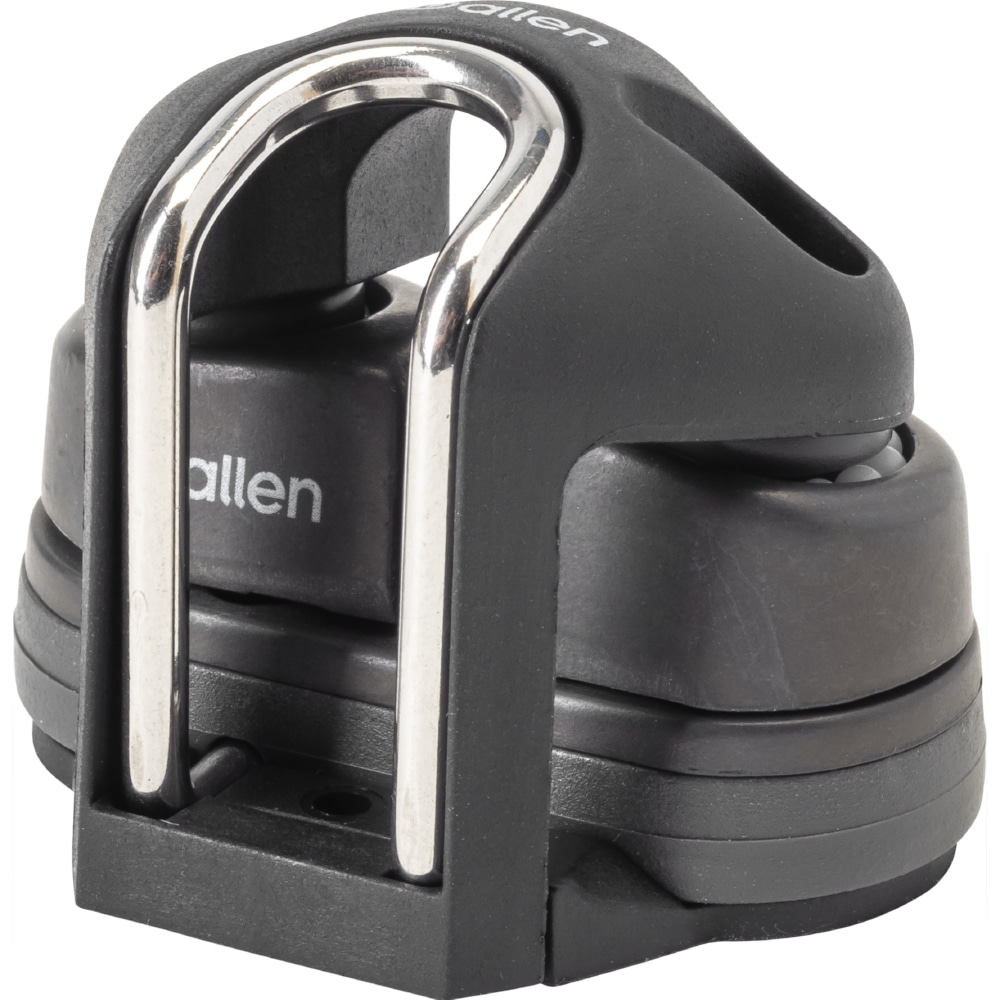

A..77-497 Ball Bearing Cam Cleat With Mega Pro Lead - Small 284392 - 610050 £39.60
A.676 Allenite Cam Cleat - Medium 385294 - 1013034 £21.68
A.676-496 Allenite Cam Cleat With Mega Pro Lead - Medium 385484 - 1013074 £34.14
A.677 Allenite Cam Cleat - Small 284222 - 68022 £17.33
A.677-497 Allenite Cam Cleat With Mega Pro Lead - Small 284392 - 68045 £29.31
A4077 Stainless Steel Base Cam Cleat - Medium 39.55184 - 126034 £15.65
A4334 Fairlead With A.676 Cam Cleat -5-4 - 1013096 £56.78
A4476 Stainless Steel Base Cam Cleat - Small 274102 - 64016 £21.57
A5848 Laser Control Line Cleats With Base 675562-6100141.9 £75.49
A5861 Laser Lower Vang Unit -5822-6-201.6 £119.28
