Product Range
Batten Hardware
A range of nylon batten pockets to cover the end of battens.
| SKU | Title | length overall mm | thickness overall mm | to suit batten diameter mm | to suit batten thickness mm | to suit batten width mm | width overall mm | Length mm | Weight g | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
A..51 | Batten Pocket Protector With SS Screws | 46 | 10 | - | 5 | 27 | 20 | 46 | 7 | £1.72 |
 |
A.101 | Batten Compression Adjuster | 71 | 20 | - | 9 | 14 | 28 | 71 | 8 | £3.31 |
 |
A.102 | Stainless Steel Batten Pocket Connector | 66 | - | - | 10 | - | 18 | 66 | 47 | £29.08 |
 |
A.151 | Batten Pocket Protector With Brass Screws | 47 | 9 | - | 4 | 34 | 10 | 47 | 3 | £2.08 |
 |
A.251 | Batten Pocket Protector With Brass Screws | 85 | 13 | - | 7 | 60 | 15 | 85 | 13 | £2.98 |
 |
A.351 | Batten Pocket Protector Brass Screws | 64 | 10 | - | 5 | 40 | 30 | 64 | 11 | £4.24 |
 |
A.419L | Batten Pocket Protector - Long | 91 | 32 | 22 | 10 | 53 | 78 | 91 | 142 | £27.97 |
 |
A.419S | Batten Pocket Protector - Short | 70 | 25 | 15 | 6 | 42 | 63 | 70 | 80 | £27.97 |
 |
A.451 | Batten Pocket Protector With Brass Screws | 43 | 16 | - | 6 | 25 | 34 | 43 | 13 | £4.64 |
 |
A.651 | Batten End Cap | 33 | 10 | - | 6 | 14.5 | 28 | 33 | 20 | £1.3 |
 |
A.751 | Batten End Cap | 20 | 10 | - | 7 | 20 | 32 | - | 6 | £1.06 |
 |
A.851 | Batten Pocket Protector With SS Screws | 64 | 10 | - | 5 | 23 | 35 | 64 | 15 | £5.26 |
 |
A.951-10 | Inboard Batten Adjuster | 62 | 17 | - | 4 | 10 | 35 | - | 33 | £22.92 |
 |
A.951-18 | Inboard Batten Adjuster | 64 | 20 | - | 6.5 | 19 | 42 | - | 45.8 | £26.95 |
 |

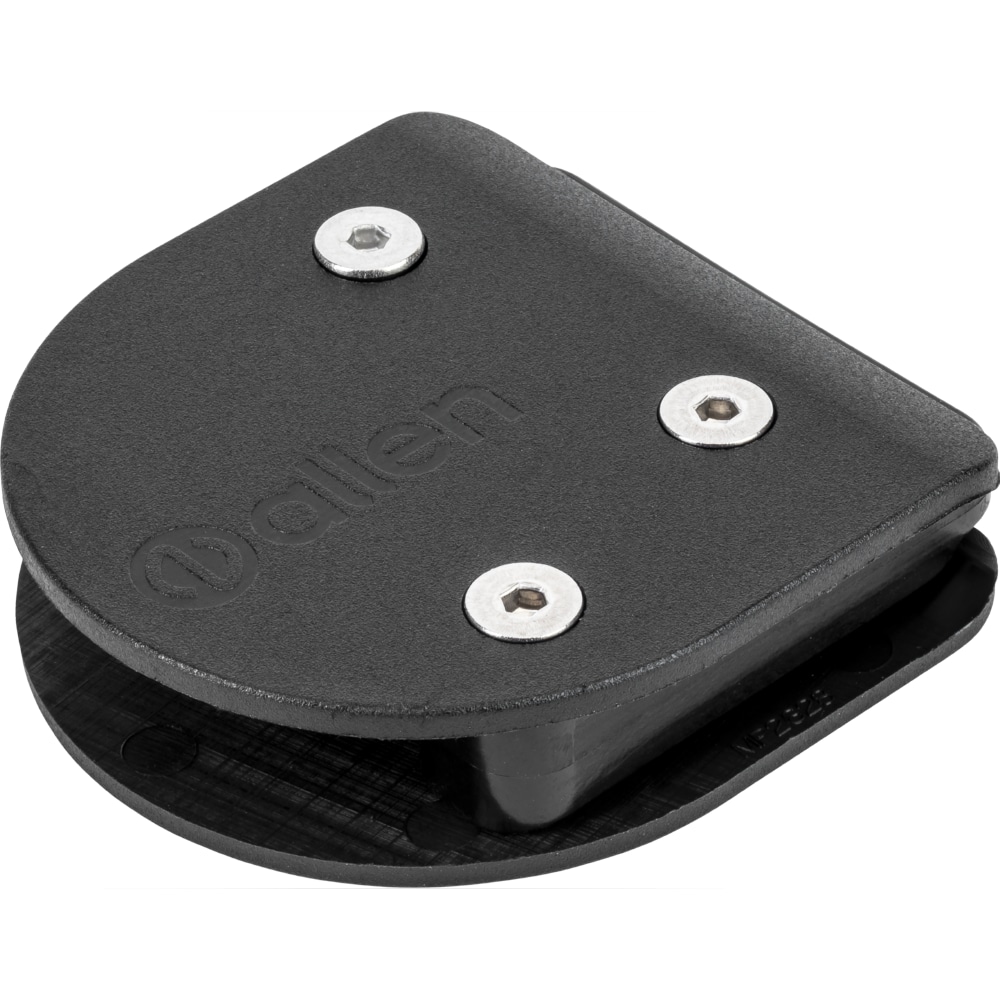

A.952-11 | 11mm Inboard Clam Shell Batten End | 61.55 | 11 | 11 x 25 | 11 | 25 | 58 | - | - | £51.98 |
|
A.952-8 | 8mm Inboard Clam Shell Batten End | 61.55 | 8 | 8 x 25 | 8 | 25 | 58 | - | - | £51.98 |
