Low Profile Sheave Box – Small

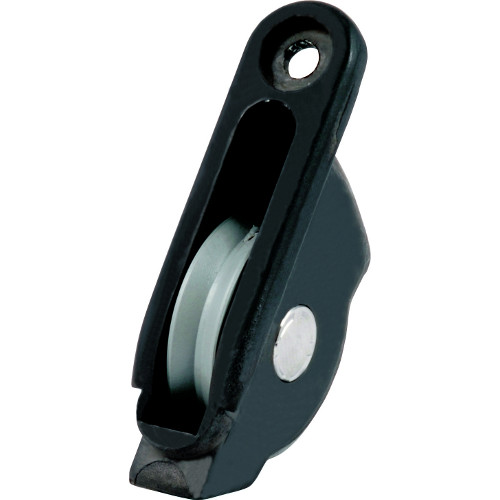

Low profile hook in aluminium body sheave box with a choice of two sheaves.

This sheave box is designed to “hook” into the mast. The lower lip sits inside the mast whilst the top is fixed via a rivet of screw.

Suited for installation into masts or booms. The sheave is not removable.

Key Features:

Durable Construction: The body is made from cast aluminium for long-lasting performance.

Various Sheave Options: A choice of two sheave materials to suit your specific application.

Versatile Compatibility: Suitable for a wide range of mast or boom sizes and applications.

Sheave Options:

Acetal Plain Bearing: The lightweight, low maintenance option. Suitable for maximum working loads up to 300Kg. Can be used with rope and wire.

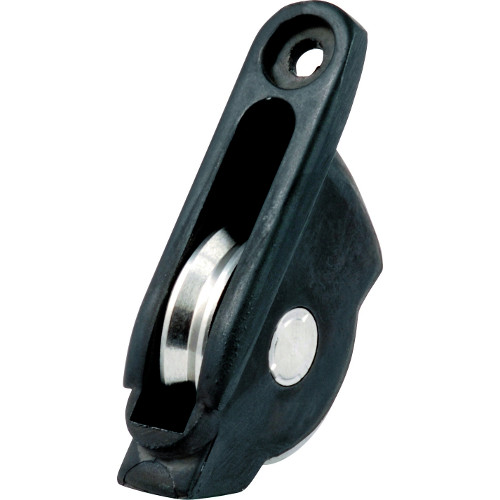

Stainless Steel Dynamic: The lowest friction for maximum performance option. Suitable for maximum working loads up to 300Kg. Ideal for fast running systems. Can be used with rope and wire.
