Range / Blocks / 30mm dynamic blocks

Single Tii-On

A2030Tii-

(2 customer reviews)

Price range: £17.22 through £31.26

30mm Single Tii-On block

View more details

By adding this item to my basket I agree I have read and understood the terms and conditions of sale.
Stockists
SKU: A2030Tii- Category: Tags: , , , , , , ,

Description

30mm Single Tii-On Block.

Our Tii-On blocks feature a stainless-steel loop at the head of the block. This gives our Tii-On range maximum strength and reliability with minimal cheek separation when tied on and loaded up with a soft shackle. The stainless-steel head loop also ensures the block stays in the right orientation when being used.

Available with or without a soft shackle.

Becket – The large central rivet not only reduces the overall weight but also offers a rope friendly attachment, perfect as a tie-off point when being used in a cascade system.

Bearings – Dynamic Blocks feature our patented bearing system which uses twin rows of stainless-steel ball bearings running on a stainless-steel rail. This provides a superior load-carrying ability and longevity when compared to other bearing systems which run on a plastic rail.

Fitting Instructions – Tii-On blocks rely on the correct attachment method to give them maximum strength.

When attaching a Tii-on block you must feed the rope around the central axle and through the head of the block.

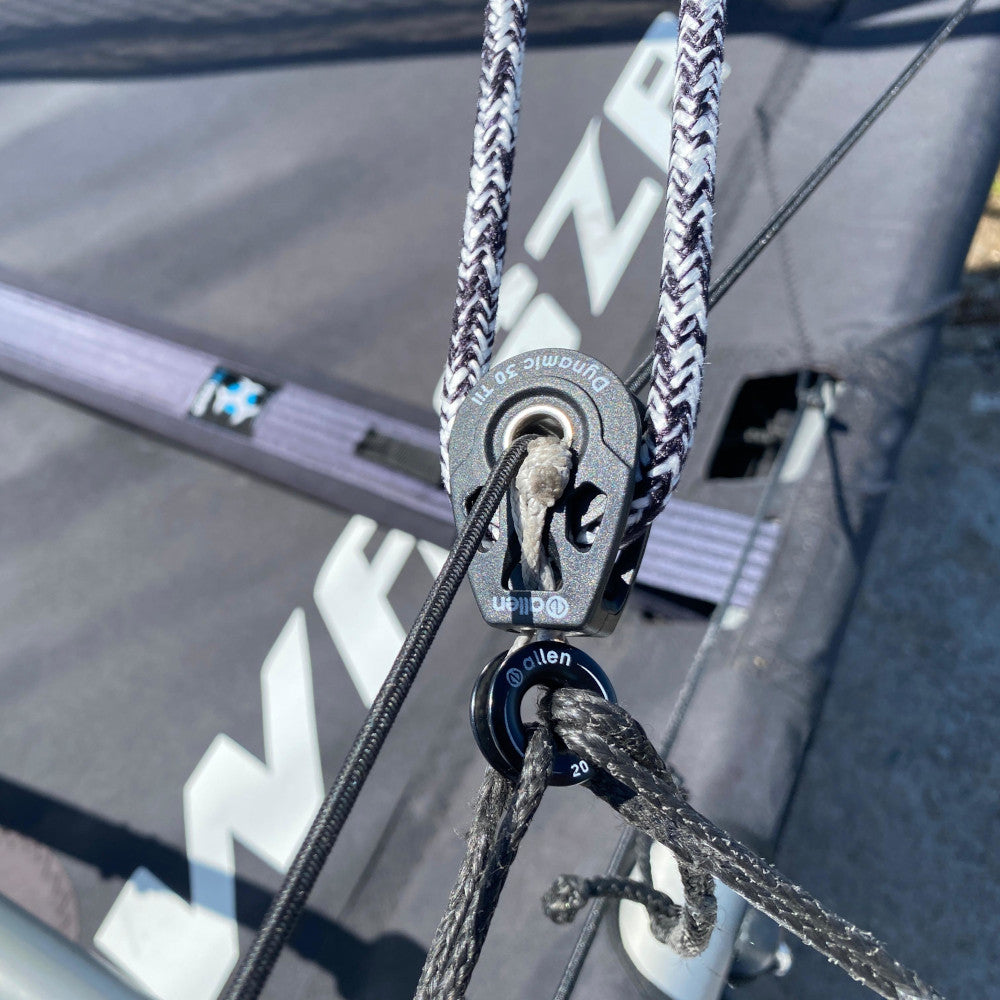

When possible, Tii-on blocks should be attached with a crossed/ through threaded line. (see pictures for example). This is very important, as it keeps the line load pulling the side cheeks together.

When using a Tii-Shackle, if possible cross the lines. Only use a non-crossed Tii-Shackle on low-load applications. See the picture above of the block attached to a lacing eye for example on how to cross the Tii-Shackle.

For further fitting advice please contact us.

2 reviews for Single Tii-On

  1. leo1

    Easily attachable ,runs free. I have had mine fore over a year and still like new.

  2. alex.stainton

    The A2030 Tii proposes amazing value for money. The stainless steel head loop prevents the block from being pulled apart when it is fastened, providing a strong sense of security that allows me to push my boat to its maximum capacity. It runs incredibly smoothly, performing a wide range of tasks with minimal friction even under high loads.

Add a review

This site uses Akismet to reduce spam. Learn how your comment data is processed.

Single Tii-On

SKUxTitlebreaking load kgfixing hole centres mmmaximum line diameter mmmaximum working load kgshackle pin mmLength mmWeight gPrice
A2030Single750-8140-4926£17.22
A2030FSingle Fork Head With Removable Pin 450-814055631£22.78
A2030F-873Single Fork Head With Kicker Key 450-814057740£30.60
A2030HLSingle High Load - Stainless Steel Sheave800-8300-4939£40.39
A2030HLFSingle Fork Head With High Load Sheave750-830055643£45.96
A2030HLF-873Single High Load Dynamic Fork Head With SA.873750-830057752£53.77
A2030LZSingle Stand-Up Fixed500348140-5930.2£26.23
A2030R2Two Singles On Ring 750-8140-082.5£40.26
A2030R3Three Singles On Ring750-8140-0108.5£60.14
A2030SC30mm Block w/Swivel450-8140467.9736£43.55
A2030SHKSingle With Swivel Hook450-8140-7035£42.62
A2030Tii-Single Tii-On750-8140-4224£17.22
A2030TiiHL-Single Tii-On With High Load Sheave 800-8300-4137£40.39
A2030XHL30mm Extreme High Load Block1250-8500-4341£157.33
A2031Single Multi Function500-814044728£15.59
A2031FSingle With Fork450-814045936£22.78
A2031SCSinge With Swivel Fork400-814046337£33.01
A2031XHL-873-30mm Extreme High Load Block With SA.8731000-8500-4855£165.12
A2032Double1250-8280-6372£47.44
A2032AArticulating Double1250-8280-6361.6£50.05
A2032HLDouble High Load1250-8450-6387£93.76
A2032Tii-Double Tii-on Block1100-8280-41.548£48.70
A2032TiiHLDouble Tii-On Block With High Load Sheave1100-8300-41.560£95.02
A2033Double With Becket1250-8280-7677£49.27
A2034Triple1750-8490-63103£62.06
A2034-676Triple With Inverted Cleat1750-8490-65193£122.06
A2034AArticulating Triple1750-8490-6382.2£64.68
A2034HLTriple High Load1750-8650-63132£131.56
A2035Triple With Becket1750-8420-83114£72.56
A2035-676Triple With Becket And Inverted Cleat1750-8490-83200£132.54
A2036Single Cheek Block500-814045935£24.95
A2036-PROFIXCheek Adaptor For A2031---3.8-06£13.40
A2036HLSingle Cheek Block With High Load Sheave50038.68300458.840£48.12
A2036MSingle Composite Cheek400308140-5024£17.69
A2036MHLSingle Compostie Cheek Block With High Load Sheave400308300-5037£33.12
A2037Triple With Cleat & Becket1750-8490-83208£132.54
A2038Back To Back750-8140-7849£52.44
A2038HLHigh Load Back To Back750-8600-7876£98.86
A2039Linked Singles750-8140-9452£36.48
A2039-CAMSingle With Fiddle And Cleat 600-8140489.3186.2£112.39
A2039-CAM-LDCSingle With Fiddle, Cleat and Hook600-8140-10086£100.21
A2039FIDDLESingle With Fiddle600-8140489.347£89.34
A2131Single Through Deck500608140-4725.6£34.92
A2131HLSingle Through Deck Block With Steel Sheave500608--7425.6£58.12
A2132Double Through Deck 500908140-7745£52.40
A2132HLDouble Through Deck Block500908--7788£98.75
A2134Upstand Block60028.68140-3934.6£39.13
A2136MDouble Composite Cheek400308280-5036.6£38.93
A2136MHLDouble Composite Cheek Block With High Load Sheave400308300-5057.6£69.78
A4101Upstand Block850258140-4557£39.13
A4111Double Upstand Block85047 x 258140-4546£69.46
A4978Flip Flop700-8140-6358£40.18
A9030TiiTAN Block1250-8500-40.6428£206.30
A9031-873TiiTAN ILCA Vang Block1000-8500568.843£213.17
