Range / Blocks / ratchet blocks

Single Switchable Ratchet With Becket & Cleat
PDF drawing
IGES file link

Single Switchable Ratchet With Becket & Cleat

A2161

£192.80

Single Switchable Ratchet With Becket & Cleat

View more details

24 in stock (can be backordered)

By adding this item to my basket I agree I have read and understood the terms and conditions of sale.
Stockists

Returns and refunds

SKU: A2161 Category: Tag:

Description

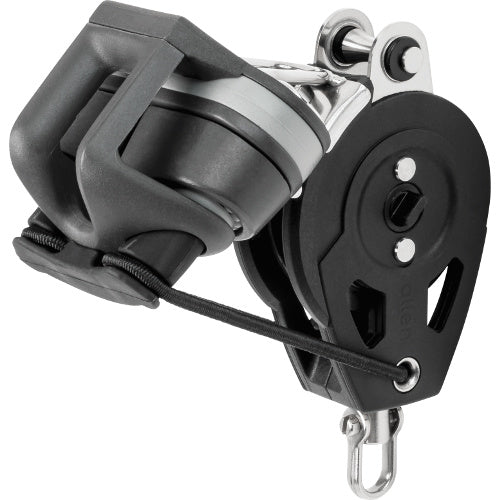

Pro-Ratchet 60 with Cleat and Becket.

Ratchet blocks feature an internal ratcheting mechanism which only allows the sheave to turn in one direction. This gives the user more control to make incremental adjustments to hand-held lines such as jib sheets, spinnaker sheets and mainsheets.

Adjustable Cam Cleat – An A..76 cam cleat is mounted to an adjustable arm to allow easy adjustment of the cleating angle.

Becket – This block features a removable becket, so spliced rope can be easily attached or removed.

Anti-Snag – Included is an anti-snag elastic line which stops your line from getting caught between the cleat and block.

Switchable – In the middle of the block is a switch that can be used, even under load, to turn the ratchet mechanism on or off. Giving you more control and feel of your control system.

Extreme Hold – The Pro-Ratchet 60 features a hardwearing nylon sheave with eight V grips to give extreme holding power on all lines. For maximum performance, we recommend pairing this ratchet block with 7mm Excel Marstron Plus.

Click the PDF above to open a detailed technical drawing.

Reviews

There are no reviews yet.

Be the first to review “Single Switchable Ratchet With Becket & Cleat”

This site uses Akismet to reduce spam. Learn how your comment data is processed.

Single Switchable Ratchet With Becket & Cleat

SKU Title Sheave Diameter mmMaximum Line Diameter mmShackle Pin mmBreaking Load KgTrigger Load KgMaximum Working Load Kg Length mm Weight g Price
A2140 Single Switchable Ratchet 4064475-120 78 40 £192.80
A2150 Pro-Ratchet 50 5084700-200 95 64.5 £192.80
A2160C Pro-Ratchet 60 With Cheek Adaptor 601051000-275 108 139 £192.80
A2160 Pro-Ratchet 60 601051000-275 110 110 £192.80
A2058 Triple With Switchable Ratchet & Adjustable Cleat 5084950-470 120 394 £192.80
A2150FIDDLE Pro-Ratchet 50 With Fiddle 5084700-200 126 80 £192.80
A2160FIDDLE Pro-Ratchet 60 With Fiddle 601051000-275 150 139 £192.80
A2159 Quint With Ratchet And Adjustable Cleat 5084950-470 136 503 £192.80
A2151 Single Switchable Ratchet With Becket & Cleat 5084700-200 136 275 £192.80
A2161 Single Switchable Ratchet With Becket & Cleat 601051000-275 127 333 £192.80
A.622 Spring Guard For Ratchets ------ 200 2.1 £192.80
A2345 X2 AutoRatchet 45 458428010140 90 56 £192.80
A2360 X2 AutoRatchet 60 60105100010275 110 139 £192.80
A2169 Quint With Ratchet And Adjustable Cleat 601261250-600 148 749 £192.80
A2068 Triple With Switchable Ratchet & Adjustable Cleat 601251250-600 145 535 £192.80
A2150C Pro-Ratchet 50 With Cheek Adaptor 5084700-200 92 80 £192.80
A2160WAVE Pro-Ratchet 60 With Wave Sheave 601051000-275 110 110 £192.80
A2360WAVE X2 AutoRatchet 60 With Wave Sheave 60105100010275 110 139 £192.80
A2345Tii X2 Tii AutoRatchet 45 458-26010140 £192.80
A21401 Pro-Ratchet 40 4064600-180 53.2 £192.80
A21401B Pro-Ratchet 40 With Becket 4064600-180 59.7 £192.80
A21403-77 Triple with Ratchet & Adjustable Cleat 40651400-180 241 £192.80
A21403B-77 Triple With Becket, Ratchet & Adjustable Cam Cleat 40651400-180 254.4 £192.80
