Range / Blocks / 30mm Plain Bearing Blocks

Plain Bearing Double Through Deck Block
PDF drawing
IGES file link

Plain Bearing Double Through Deck Block

A2132P

£43.96

19 in stock (can be backordered)

By adding this item to my basket I agree I have read and understood the terms and conditions of sale.
Stockists

Returns and refunds

SKU: A2132P Category:

Description

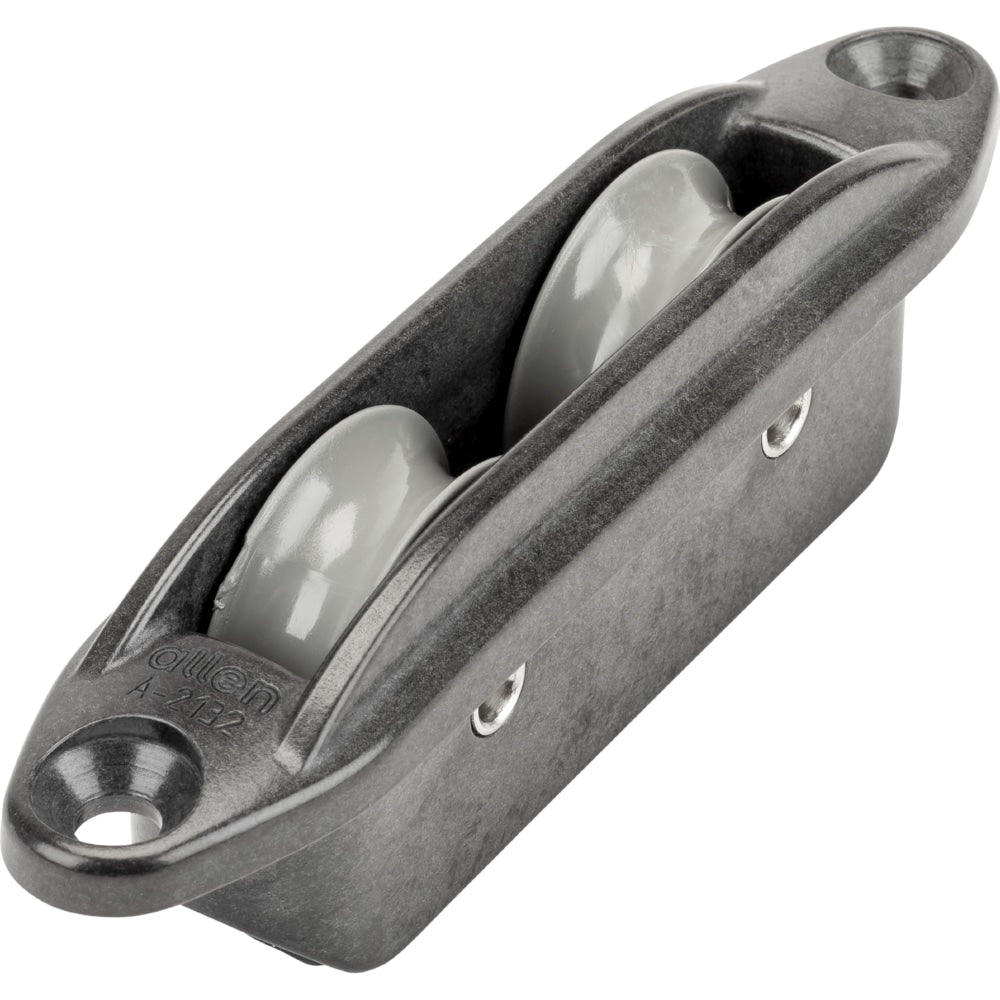

30mm Plain Bearing Through Deck Double Block.

Through deck blocks are designed to guide rope control lines through a deck or surface.

Featuring a hard-wearing acetal body shaped perfectly to house the sheave, which results in a performance that you can rely on for adjustable rigging and other highly loaded applications.

Available with one or two sheaves and in plain and ball bearing systems to suit a wide variety of applications.

This double sheave version allows the rope to run through a surface at a maximum of 180 degrees.

Plain Bearing – The acetal sheave spins around the central axle. This type of bearing has a long lifespan and is very low maintenance.

Click the PDF logo above for a detailed technical drawing.

Reviews

There are no reviews yet.

Be the first to review “Plain Bearing Double Through Deck Block”

This site uses Akismet to reduce spam. Learn how your comment data is processed.

Plain Bearing Double Through Deck Block

SKU Title breaking load kgMaximum Line Diameter mmfixing hole centres mm Length mm Weight g Price
A2030P Plain Bearing Single 7508- 49 23 £43.96
A2030PLZ Plain Bearing Stand Up Single 5008- 59 £43.96
A2030PSC Plain Bearing Single With Swivel 6008- 66.3 £43.96
A2030PSHK Plain Bearing Single With Swivel Hook 4508- 70.4 £43.96
A2031P Plain Bearing Multi-Function Single 7508- 46.6 £43.96
A2032P Plain Bearing Double 12508- 64 £43.96
A2033P Plain Bearing Double With Becket 12508- 76 £43.96
A2034P Plain Bearing Triple 17508- 62.6 £43.96
A2035P Plain Bearing Triple With Becket 17508- 82.5 £43.96
A2036P Plain Bearing Cheek Block 5008- 58.7 £43.96
A2030PF Plain Bearing Single With Fork Head And Removable Pin 6008- 56 £43.96
A2030PF-873 Plain Bearing Single With Fork Head And Vang Key 6008- 77 £43.96
A2132P Plain Bearing Double Through Deck Block 500890 37.6 £43.96
A2131P Plain Bearing Single Through Deck Block 500860 25.6 £43.96
