£19.27

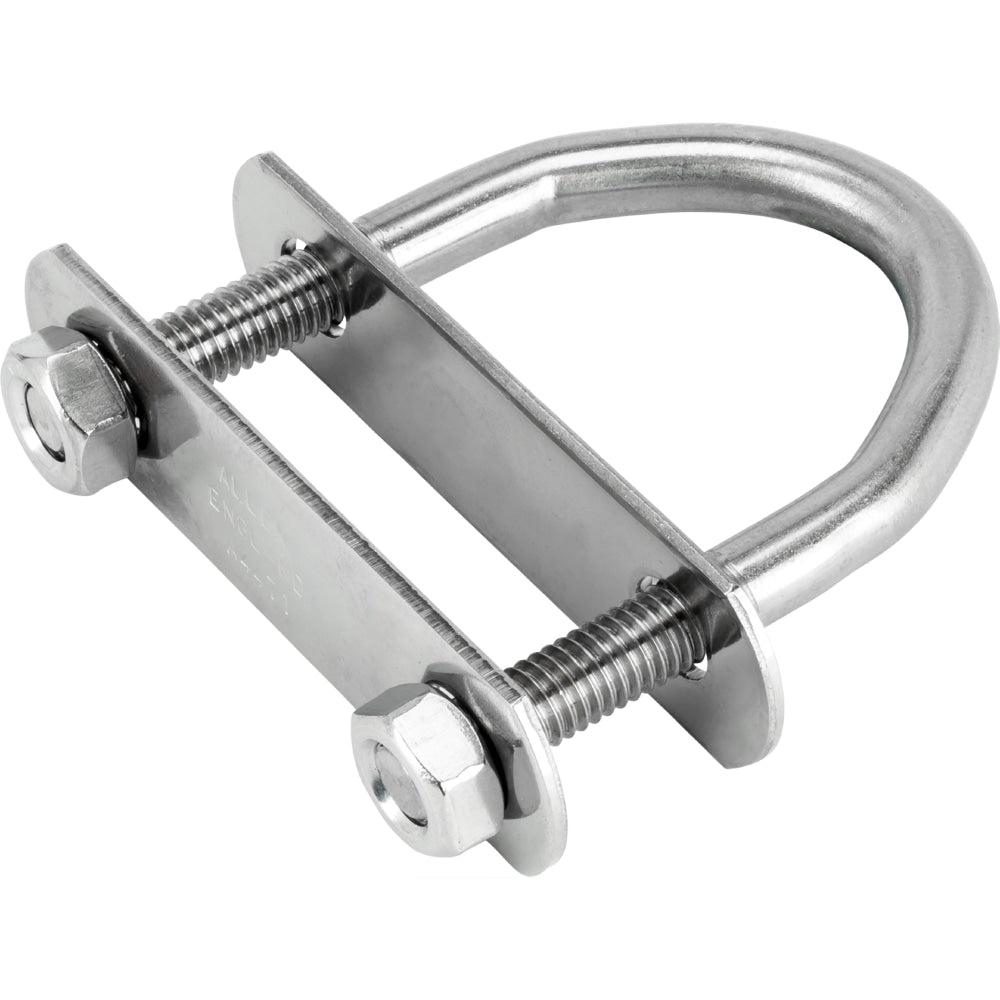

U Bolt With Top & Bottom Backing Plate
View more details25 in stock (can be backordered)
U Bolt With Top & Bottom Backing Plate
6mm rod – 32mm internal width.
Shaped like the letter “U” with threaded ends and two backing plates.
Typically bolted through the deck of a boat and used as an attachment point for lines, hardware or rigging.
This comes as one singular U-Bolt, with two nuts, and two backing plates (one for either side of the deck).
Made from marine-grade stainless steel.
Click the PDF above to open a detailed technical drawing.
You must be logged in to post a review.
This site uses Akismet to reduce spam. Learn how your comment data is processed.
| SKUx | Title | fixing hole centres mm | height mm | inside width mm | rod size mm | thread length mm | Length mm | Weight g | Price |
|---|---|---|---|---|---|---|---|---|---|
| A4371 | U Bolt With Top & Bottom Backing Plate | 28 | 43 | 23 | 5 | 20 | 0 | 24 | £16.75 |
| A4371L | Long U Bolt With Top & Bottom Backing Plate | 28 | 51 | 23 | 5 | 20 | 0 | 29 | £17.32 |
| A4471 | U Bolt With Top & Bottom Backing Plate | 38 | 58 | 32 | 6 | 25 | 0 | 54 | £19.27 |
| A4512 | U Bolt With Lowers & Bottom Backing Plate | 28 | 80 | 22 | 6 | 25 | 0 | 100 | £77.18 |
| A4571 | U Bolt With Top & Bottom Backing Plate | 51 | 75 | 43 | 8 | 25 | 0 | 115 | £25.06 |
| A4671 | U Bolt With Top Backing Plate | 38 | 77.5 | 32 | 6 | 39 | 0 | 53 | £24.84 |
| A4671XT | Long U Bolt With Nut & Washer | 38 | 120 | 32 | 6 | 96 | 0 | 57 | £50.78 |
| A4671XT-FT | Long U Bolt With Tang, Nut & Washer | 38 | 120 | 32 | 6 | 96 | 0 | 91 | £86.77 |
| A4871 | U Bolt With Heavy Duty Top & Bottom Backing Plate | 28 | 43 | 22 | 6 | 20 | 0 | 62 | £25.00 |
| A4871X | U Bolt With Heavy Duty Top & Bottom Backing Plate | 28 | 50 | 22 | 6 | 25 | 0 | 60 | £26.72 |
