Range / Blocks / ratchet blocks

Quint With Ratchet And Adjustable Cleat

A2169

(1 customer review)

£474.02

6 in UK warehouse


By adding this item to my basket I agree I have read and understood the terms and conditions of sale.
Stockists
SKU: A2169 Category:

Description

60mm Quint Block with Ratchet, Cam Cleat and Becket.

This block has been developed for use as a mainsheet block on performance catamarans. The middle sheave is a ratchet cassette with the other four sheaves featuring our dynamic bearing technology for ultimate friction-free performance.

Custom Fairlead – We have developed, with feedback from the world’s best Cat sailors, a custom mainsheet fairlead for the cam cleat. This fairlead allows the user to “play” the mainsheet with minimal friction, but when necessary guiding the line into the cam cleat with ease.

Adjustable Cam Cleat – The A..76 cam cleat is mounted to an adjustable arm to allow 25 degrees of adjustment at 12.5-degree intervals.

Becket – A removable becket allows the termination of a spliced mainsheet or the addition of an extra block to increase the purchase system.

Switchable – In the middle of the block is a switch that can be used, even under load, to turn the ratchet mechanism on or off. Giving you more control and feel of your control system.

Extreme Hold – The Pro-Ratchet 60 features a hardwearing nylon sheave with eight V grips to give extreme holding power on all lines. For maximum performance, we recommend pairing this ratchet block with 7mm Excel Marstron Plus.

Swivel Lock – The swivel can be locked in 90-degree orientations with the supplied shackle lock moulding. Alternatively, remove the moulding around the shackle to let the block spin freely.

For quick release, we recommend replacing the standard shackle with the WD-2293 snap shackle.

The 40mm block pictured is not included.

1 review for Quint With Ratchet And Adjustable Cleat

  1. william

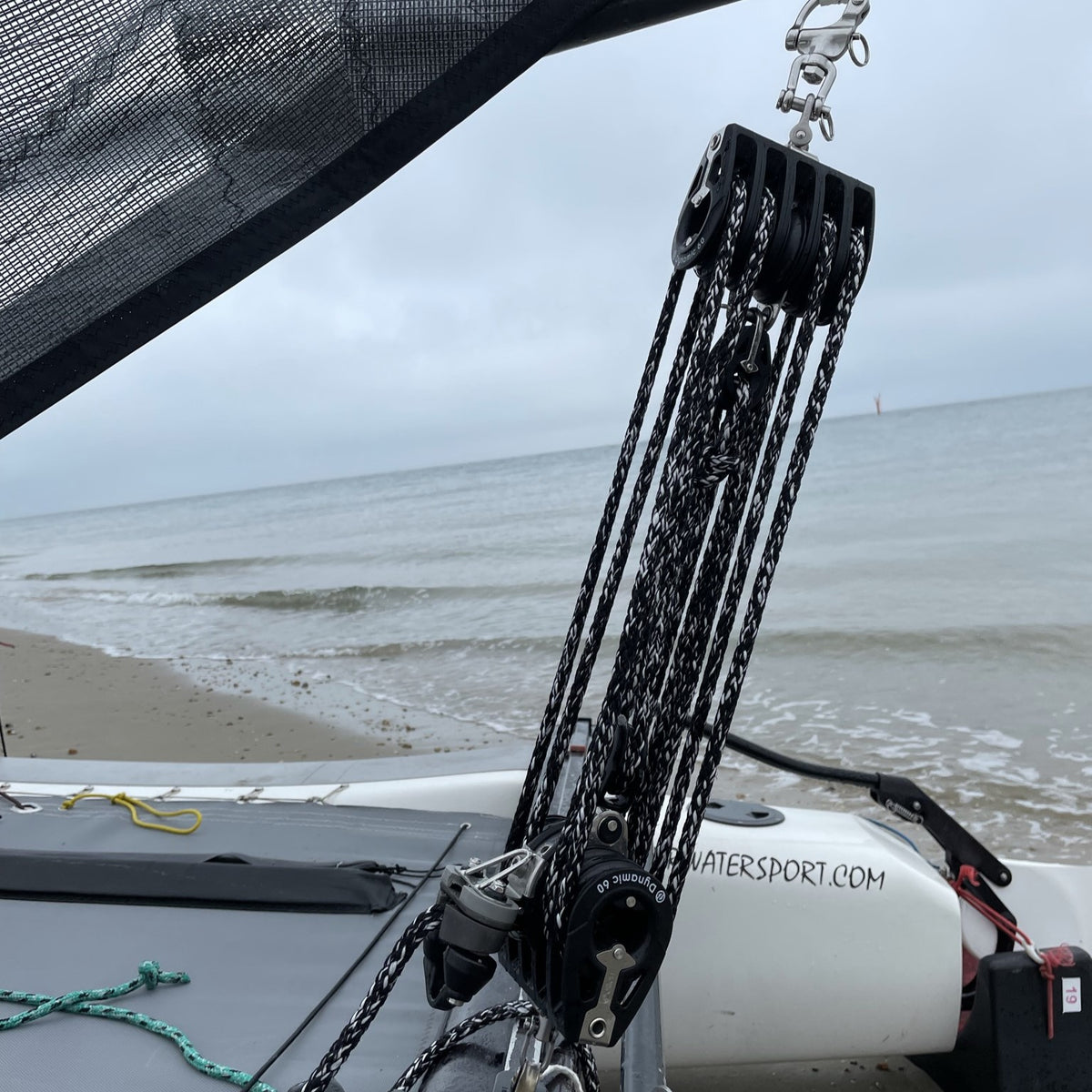

    I put this block system onto my Formula 18 catamaran with great results. Never has it been easier to play the mainsail and respond quickly to gusts. The product feels robust and when combined with a Maffioli mainsheet it runs really freely.

    Now I’ve asked the Allen team to put together a 14:1 system for the Vampire. It will be great if we can get the same gust response without the big mainsail pulling our arms off.

Add a review

This site uses Akismet to reduce spam. Learn how your comment data is processed.

Quint With Ratchet And Adjustable Cleat

SKUTitlebreaking load kglength mmmaximum line diameter mmmaximum working load kgshackle pin mmsheave diameter mmtrigger load kgWeight gPrice
A.622Spring Guard For Ratchets-------2.1£2.36
A2058Triple With Switchable Ratchet & Adjustable Cleat950123.7510470450-394£189.07
A2068Triple With Switchable Ratchet & Adjustable Cleat125014312600560-535£198.67
A2140Single Switchable Ratchet47581.786120440-40£57.94
A2150Pro-Ratchet 5070098.6310200450-64.5£89.93
A2150CPro-Ratchet 50 With Cheek Adaptor7009210200450-80£96.28
A2150FIDDLEPro-Ratchet 50 With Fiddle700127.6310200450-80£82.39
A2151Single Switchable Ratchet With Becket & Cleat700125.0910200450-64.6£163.99
A2159Quint With Ratchet And Adjustable Cleat 950123.0510470450-503£354.77
A2160Pro-Ratchet 601000117.3612275560-110£98.00
A2160CPro-Ratchet 60 With Cheek Adaptor100010812275560-139£105.19
A2160FIDDLEPro-Ratchet 60 With Fiddle1000152.2112275560-139£130.14
A2160WAVEPro-Ratchet 60 With Wave Sheave 1000117.3612275560-110£109.52
A2161Single Switchable Ratchet With Becket & Cleat1000143.212275560-333£184.50
A2169Quint With Ratchet And Adjustable Cleat 125014812600660-749£474.02
A2345X2 AutoRatchet 452809081404451056£79.43
A2345TiiX2 Tii AutoRatchet 4526064.758140-451038.7£79.43
A2360X2 AutoRatchet 601000117.351227556010139£101.47
A2360WAVEX2 AutoRatchet 60 With Wave Sheave1000117.361227556010139£113.02
