Range / Track, Cars and Keelband / Size 14

Size 14 End Stop With Double Block And Becket
PDF drawing

Size 14 End Stop With Double Block And Becket

A9214-2

£82.45

3 in stock (can be backordered)

By adding this item to my basket I agree I have read and understood the terms and conditions of sale.
Stockists

Returns and refunds

SKU: A9214-2 Category: Tags: , ,

Description

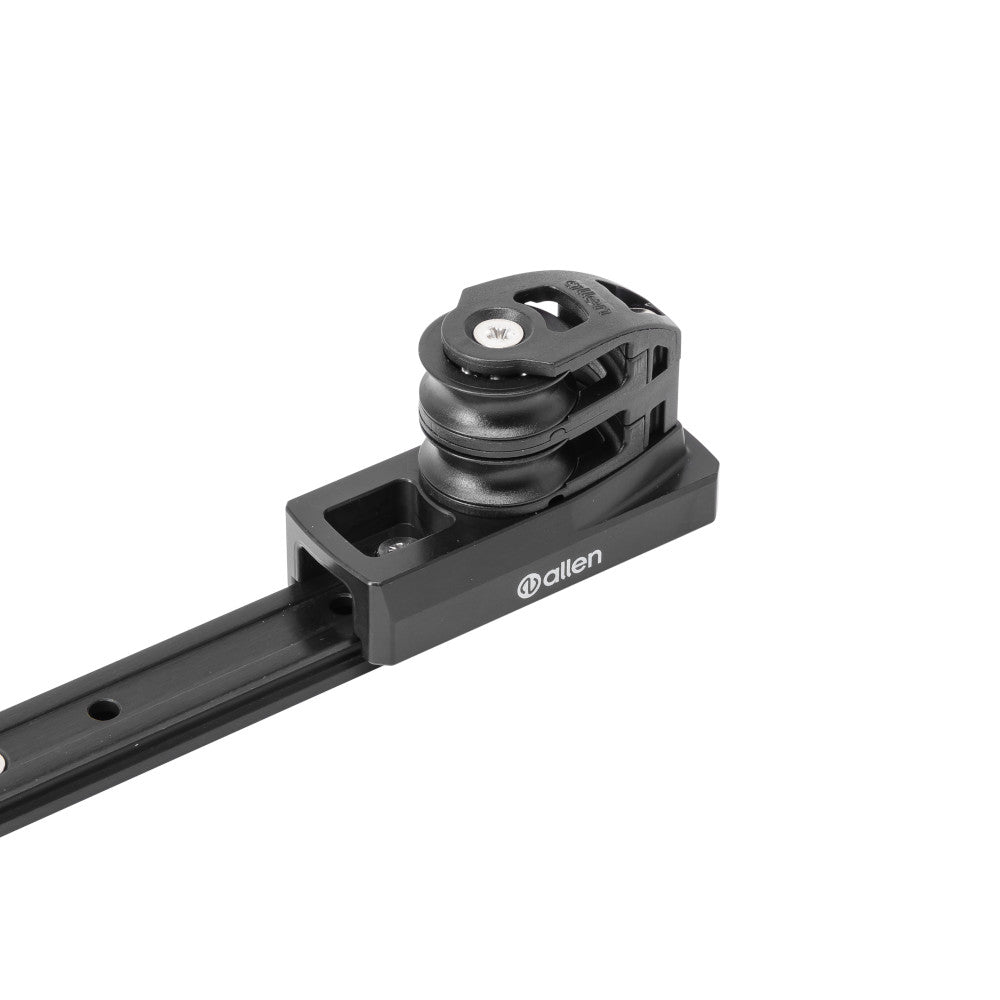

Size 14 End Stop with Double Block and Becket

The Size 14 End Stop with Double Block and Becket is expertly designed to enhance the functionality and aesthetics of your traveller system. CNC machined from marine-grade aluminium, this endstop delivers exceptional strength, precision, and durability. Finished with a black anodised coating.

Cheek Block

This version features a pre-installed 20mm dynamic double cheek block, providing versatile options for traveller car control systems. The block is securely attached using two machine screws threaded into tapped holes on the end stop body, making replacement or maintenance quick and straightforward.

Becket

The integrated becket is designed with a smooth, rope-friendly surface, allowing you to tie or splice lines with ease. This feature adds flexibility to your rigging setup, ensuring a reliable and user-friendly system.

Easy Installation

The end stop comes complete with all the necessary hardware, including nuts, bolts, and washers, for secure attachment to the track.

Breaking and MWL

These loads are based on the included block.

Click the PDF logo above to open a detailed technical drawing.

Reviews

There are no reviews yet.

Be the first to review “Size 14 End Stop With Double Block And Becket”

This site uses Akismet to reduce spam. Learn how your comment data is processed.

Size 14 End Stop With Double Block And Becket

SKU Title Maximum Working Load KgBreaking Load KgHeight mmLength mmWidth mmAccessoriesFixing Hole Centres mmFixing Hole Diameter Length mm Weight g Price
A9114 Size 14 Base Car 120800345040--- 70 £82.45
A9114-1 Size 14 P-Clip Car 120800345040A4038-4-- 70 £82.45
A9114-2 Size 14 Cheek Block Car 1208003410540A2026-- 99 £82.45
A9114-Tii Size 14 Tii-On Car 12080019.449.640--- 59 £82.45
A9114-Tii-90 Size 14 Tii-On 90 Degree Car 12080019.549.640--- 55 £82.45
A9114-LOADER Size 14 Ball Bearing and Track Loader -------- 0 £82.45
A9014 Size 14 Track --10-14-75M4 0 £82.45
A9214-1 Size 14 End Stop With Block And Becket 12080027.557.525A2026M33.50M4 53 £82.45
A9214-2 Size 14 End Stop With Double Block And Becket 2258004057.525A2126M33.50M4 64 £82.45
A9214 Size 14 End Stop With Becket --142725--M4 17 £82.45
undefined Size 14 Plastic End Stop --142722--M4 £82.45
A9114-3 Self Tacking Jib Car 120800555040A2031-- 0 £82.45
