Range / Blocks / ratchet blocks / Quint With Ratchet And Adjustable Cleat

Quint With Ratchet And Adjustable Cleat

A2159

£350.00

Ideal for use on Keelboats and Catamarans for a range of applications from jib sheet to mainsheet systems, to backstay tensioning systems and everything in between.

View more details

4 in stock (can be backordered)


By adding this item to my basket I agree I have read and understood the terms and conditions of sale.
Stockists
SKU: A2159 Category: Tags: ,

Description

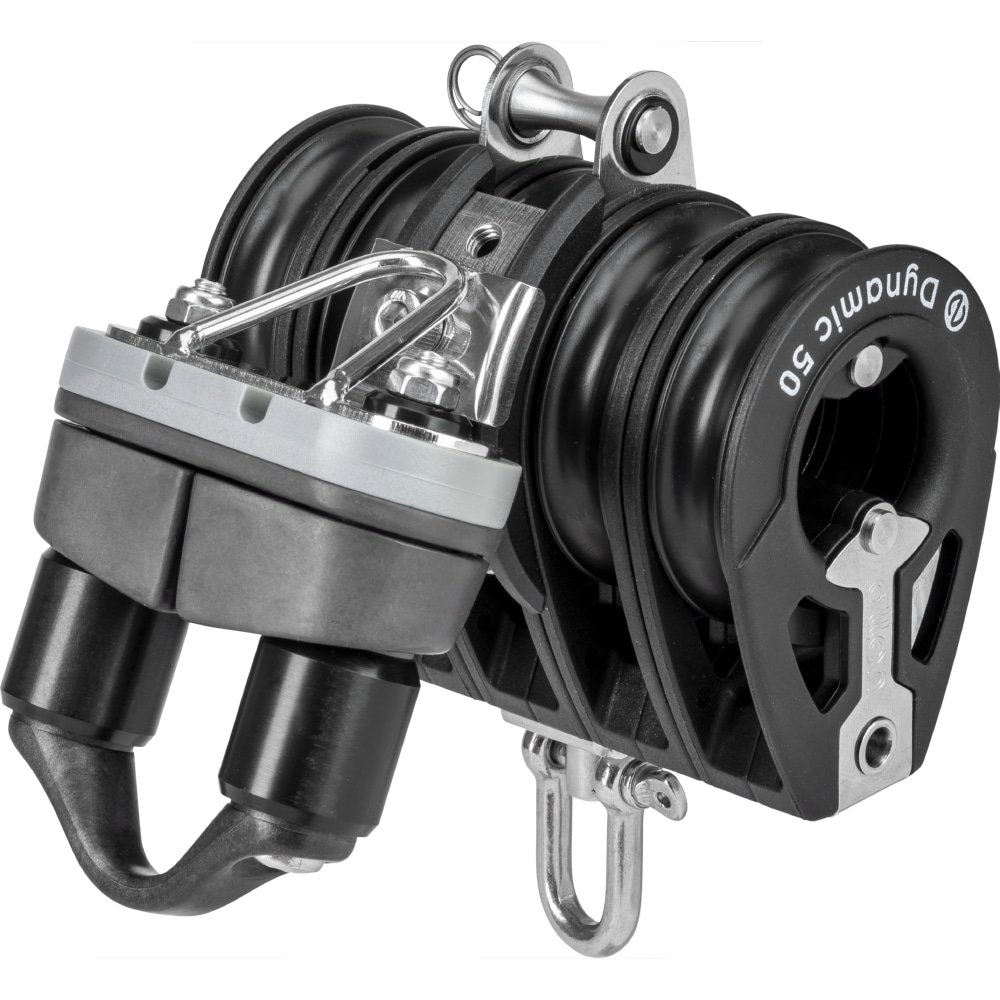

50mm Dynamic Quint Block with Switchable Ratchet and Adjustable Cleat.



Ideal for use on Keelboats and Catamarans for a range of applications from jib sheet to mainsheet systems, to backstay tensioning systems and everything in between. Pair with the A2059 for a complete system.



Adjustable Cam Cleat Arm – The cam cleat angle can be adjusted by undoing the bolt and sliding the cam cleat on the track up or down. Re-tighten the bolt into one of the new location holes to keep the cleat arm in position.



Bearings – Dynamic Blocks feature our patented bearing system, which uses twin rows of stainless-steel ball bearings running on a stainless-steel rail. This provides a superior load-carrying ability and longevity when compared to other bearing systems available on the market.



Custom Fairlead – The A2159 features a custom fairlead which has been designed to allow easy cleating of the mainsheet when pulled from the trapeze. It also gives minimal friction to ensure you can play the mainsheet harder for longer.



Becket – The becket is removable for customisation of purchase systems.



For quick release, we recommend replacing the standard shackle with the WD-2293 snap shackle.

Reviews

There are no reviews yet.

Be the first to review “Quint With Ratchet And Adjustable Cleat”

This site uses Akismet to reduce spam. Learn how your comment data is processed.

Quint With Ratchet And Adjustable Cleat

SKU Title Sheave Diameter mmMaximum Line Diameter mmShackle Pin mmBreaking Load KgTrigger Load KgMaximum Working Load Kg Length mm Weight g Price
A2140 Single Switchable Ratchet 4064475-120 78 78 £46.34
A2150 Pro-Ratchet 50 5085700-200 95 95 £85.00
A2160C Pro-Ratchet 60 With Cheek Adaptor 601051000-275 108 108 £114.20
A2160 Pro-Ratchet 60 601051000-275 110 110 £90.00
A2058 Triple With Switchable Ratchet & Adjustable Cleat 5084950-470 120 120 £190.00
A2150FIDDLE Pro-Ratchet 50 With Fiddle 5085700-200 126 126 £95.00
A2160FIDDLE Pro-Ratchet 60 With Fiddle 601051000-275 150 150 £110.00
A2159 Quint With Ratchet And Adjustable Cleat 5084950-470 136 136 £350.00
A2151 Single Switchable Ratchet With Becket & Cleat 5084700-200 136 136 £130.00
A2161 Single Switchable Ratchet With Becket & Cleat 601051000-275 127 127 £140.00
A.622 Spring Guard For Ratchets ------ 200 200 £2.57
A2345 X2 AutoRatchet 45 458428010140 90 90 £80.00
A2360 X2 AutoRatchet 60 60105100010275 110 110 £105.00
A2169 Quint With Ratchet And Adjustable Cleat 601261250-600 148 148 £450.00
A2068 Triple With Switchable Ratchet & Adjustable Cleat 601251250-600 145 145 £210.00
A2150C Pro-Ratchet 50 With Cheek Adaptor 5084700-200 92 92 £104.53
A2160WAVE Pro-Ratchet 60 With Wave Sheave 601051000-275 110 110 £90.00
A2360WAVE X2 AutoRatchet 60 With Wave Sheave 60105100010275 110 110 £105.00
A2345Tii X2 Tii AutoRatchet 45 458-26010140 £86.24
A21401 Pro-Ratchet 40 4064600-180 £80.00
A21401B Pro-Ratchet 40 With Becket 4064600-180 £85.00
A21403-77 Triple with Ratchet & Adjustable Cleat 40651400-180 £210.00
A21403B-77 Triple With Becket, Ratchet & Adjustable Cam Cleat 40651400-180 £215.00
