Range / Track, Cars and Keelband / Size 19

Size 19 Track
PDF drawing

Size 19 Track

A9019

Price range: £59.10 through £146.12

By adding this item to my basket I agree I have read and understood the terms and conditions of sale.
Stockists

Returns and refunds

SKU: A9019 Category: Tags: , , , , , , , , , ,

Description

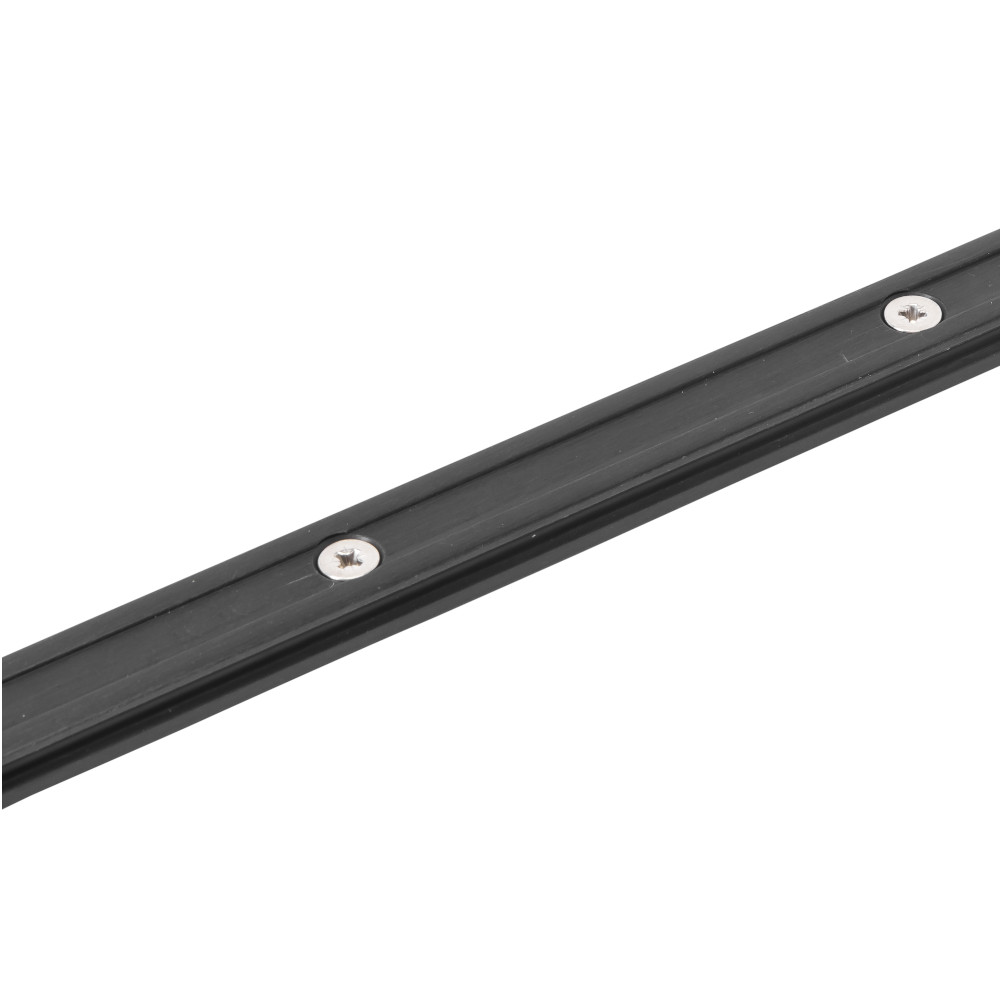

Size 19 Track

The Size 19 Track is available in metre lengths, up to 3 metres, and is pre-drilled for quick and straightforward installation. Each track is finished with a durable black anodised coating, ensuring long-lasting performance and a sleek, professional appearance.

Fixing Hole Diameter: M5

Fixing Hole Pitch: 100mm

Click the PDF logo above to open a detailed technical drawing, which includes holes spacing and size.

Custom Bending Services

Allen offers custom bending services for Size 19 Track, tailored to your exact specifications. Whether you require horizontal, vertical, or compound bends, our team can deliver precise results for an additional charge.

For more information about custom bending options or to discuss your specific requirements, please contact our sales team.

Click the PDF logo above to open a detailed technical drawing.

Reviews

There are no reviews yet.

Be the first to review “Size 19 Track”

This site uses Akismet to reduce spam. Learn how your comment data is processed.

Size 19 Track

SKU Title AccessoriesBreaking Load KgFixing Hole Centres mmFixing Hole DiameterHeight mmMaximum Work Load KgWidth mmLength mm Length mm Weight g Price
A9119 Size 19 Base Car -1400--5023050.5070 77 £59.10
A9119-1 Size 19 P-Clip Car A40351400--5023050.5097 85 £59.10
A9119-2 Size 19 Cheek Block Car A20361400--5023050.50153 147 £59.10
A9119-4 Size 19 Cat Car A..76-4961400--7023010670 376 £59.10
A9119-5 Size 19 Sheave Car -1400--5023050.5070 125 £59.10
A9119-Long Size 19 Long Car A20361600--5026050153.4 232 £59.10
A9119-Tii Size 19 Tii-On Car -1400--2623050.569.3 56 £59.10
A9119-Tii-90 Size 19 Tii-On 90 Degree Car -1400--26.6023050.5069.30 52 £59.10
A9019 Size 19 Track --100M510-19- 0 £59.10
A9219 Size 19 End Stop With Becket ---M519-32.5033 35 £59.10
A9219-1 Size 19 End Stop With Block And Becket A2036M40050.50M53114032.5080 65 £59.10
A9219-2 Size 19 End Stop With Double Block And Becket A2136M40050.50M55128032.5080 100 £59.10
A9219-PIN-1 Size 19 Pin Stop Car With Lacing Eye -1000--34.55003668 75 £59.10
A9219-PIN-2 Size 19 Pin Stop Car With Removable Bar -1000--25.65003668 36 £59.10
A9219-PIN Size 19 Pin Stop ----25.70-3030 36 £59.10
A9219-PS Size 19 Plastic End Stop ---M515-1527.50 3 £59.10
A9019-PIN Size 19 Pin Stop Track ---M510-19- 0 £59.10
A9119-LOADER Size 19 Car Loader -------- 0 £59.10
A9119-5-LONG Size 19 Sheave Car Long -1400--5030050.50100 145 £59.10
